Item shown may not be actual product.Product and price information are subject to change without notice.

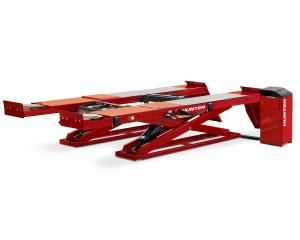

12,000 lb. Surface Mount Scissor Lift, Inflation Station, FIA, PowerSlide, Harsh Duty - Red
Item Number: HUNRX12KISPR
Supplier:
HUNTER ENGINEERING COMPANY
Description
12,000 lb. capacity Surface Mount Scissor Lift includes Inflation Station, Fully Integrated Alignment (FIA), PowerSlide®, Harsh Duty Red
Features
- Large capacity with a small footprint
- 24 in. wide runways
- Best in class drive on height
- Integrated air line
- Sensor feedback system
- Velocity safety fuses
- Safety locks
- Movable work steps
- Fast descent speed - 50% faster lowering times
- Ensures a soft landing by automatically slowing the last several inches.
- Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations
Includes
- Fully Integrated Alignment
- Inflation Station
- PowerSlide®
- (2) 6,000 lb. Swing Jacks
- PowerSlide® Turnplates
- Louvered Ramps
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Requirements: 208-230 VAC, single phase power, 26 Amp
- Air Supply Requirements: 130-150 PSI (9-10.3 bar)
- Min. Concrete Spec.: 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
- Max. Floor Slope: 2 in. (51 mm) over 126 in. (3200 mm)
- Maximum Vehicle Weight: 12,000 lbs. (5443 kg)
- Max. wheelbase - General service: 184 in. (4673 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 179 in. (4547 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Lowered Height: 10 in. (254 mm)
- Maximum Lifting Height: 71 in. (1803 mm)
- Tread width - Min. inside: 40 in. (1016 mm)
- Tread width - Max. outside: 88 in. (2235 mm)
- Speed: 55 seconds (raise), 25 seconds (descent)
