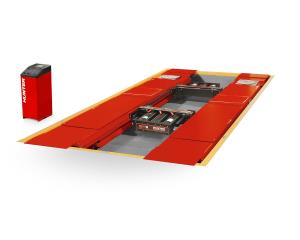

16,000 lb. Flush Mount Scissor Lift, Stainless Steel Turnplates
Item Number: HUNRX16KF
Supplier:
HUNTER ENGINEERING COMPANY
Description
16,000 lb. capacity flush mount scissor lift, includes (2) 9,000 lb Swing Jacks and Stainless turnplates.
Features
- Massive capacity with a small footprint
- 26 in. runways accept wide heavy vehicles
- Flush installation provides ultimate in drive on clearance
- Reduces clearance issues
- Comfortable 72 in. maximum height
- Stainless steel turnplates -Maximum corrosion resistance for long life
- Integrated air line
- Velocity safety fuses
- Two 9,000 lbs. Swing Air Jacks.
- Control panel - complete operation from the console
- Safety locks - precision-fit teeth lock runways at 16 level height positions
- Movable work steps
- Fast descent speed - 50% faster lowering times
- Ensures a soft landing by automatically slowing the last several inches
Includes
- (2) 9,000 lb. Swing Jacks
- Stainless Turnplates
- Louvered ramps
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Vehicle Weight: 16,000 lbs.
- Maximum wheelbase: General Service: 187" (4749 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 182" (4623 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
- Minimum Four-Wheel Alignment: 88" (2235 mm)
- Maximum Lifting Height: 71" (1803 mm)
- Alignment Height: All lock positions
- Runway width: 26" (660 mm)
- Tread Width - Minimum Inside: 40" (1016 mm)
- Tread Width - Maximum Outside: 92" (2337 mm)
- Air pressure: 90-150 psi (6.2 - 10.3 bar)
- Speed: 60 seconds raise, 25 seconds descent
