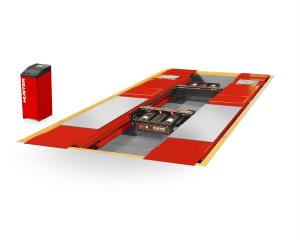

16,000 lb. Flush Mount Scissor Lift, Harsh Duty - Red
Item Number: HUNRX16KFPRR
Supplier:
HUNTER ENGINEERING COMPANY
Description
16,000 lb. capacity flush mount, harsh duty scissor lift - red
Features
- Large capacity with a small footprint
- 26 in. wide runways
- Best in class drive on height
- Integrated air line
- Sensor feedback system
- Velocity safety fuses
- Safety locks
- Movable work steps
- Fast descent speed - 50% faster lowering times
- Ensures a soft landing by automatically slowing the last several inches.
- Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations
Includes
- (2) 9,000 lb. Swing Jacks
- Louvered Ramps
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Vehicle Weight: 16,000 lbs. (7257 KG)
- Max. wheelbase - General service: 183 in. (4648 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 178 in. (4521 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Maximum Lifting Height: 71 in. (1803 mm)
- Runway Width: 26 in. (660 mm)
- Tread width - Min. inside: 40 in. (1016 mm)
- Tread width - Max. outside: 92 in. (2337 mm)
- Air Pressure: 90-150 psi (6.2-10.3 bar)
- Speed: 60 seconds (raise), 25 seconds (descent)
