Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to HUNSWE30

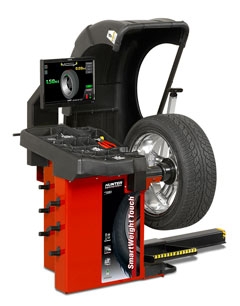

SWT30 SmartWeight Touch
Item Number: HUNSWT30
Supplier:
HUNTER ENGINEERING COMPANY
Description
SmartWeight® Touch High-Capacity Wheel Balancer with Wheel Lift option, and AutoClamp option,
Features
- SmartWeight® Technology
- Improves balance
- Minimizes weight usage
- Maximizes productivity
- Touchscreen Interface
- Intuitive design
- Quickly trains new technology
- eCal™ Auto-Calibration
- True "self-calibration"
- No operator input required
- On-Demand Videos
- Simplifies training
- Improves results
- CenteringCheck®
- Ensures proper centering
- Eliminates setup errors
- Bottom-Dead-Center Laser
- Speeds tape-weight placement
- Improves accuracy
- Superior Alloy Shaft
- Most durable in industry
- Ensures accurate balancing for years to come
- TPMSpecs® Reset Information
- Presents 100+ TPMS reset procedures in a simple comprehensive, user-friendly way
- One-click access with bar code scanner (sold separately)
- Updatable database
- Present info through any internet-connected shop computer or produce hardcopy pages with optional printer
- On-Screen Instruction
- High-definition videos provide instruction on a variety of balancing and tire changing topics
- Covers basic techniques to more advanced procedures
- Instant access, easy navigation
- On-site training for your technicians
Includes
- SmartWeight Touch High-Capacity Wheel Balancer
- Wheel Lift Option
- Safely service heavy, oversized wheels
- Helps with precise center-mounting
- AutoClamp Option
- Clamps wheels automatically
- Saves time and effort
- Eliminate wingnut
Note: Cones/Collets and flange plates sold separately.
Warranty
Call your Tool and Equipment Program representative for specific warranty information.
NOTE: Some dimensions, capacities, and specifications may vary depending on Model, accessories, and tire and wheel configuration.
Product Specifications
- Power Requirments: 196-253V, 10Amp, 50/60 Hz, 1 ph (Power cable includes: NEMA 20 Amp plug, L6-20P)
- Air Supply Requirements: 100-175 p.s.i. (7-12 bar)
- Rim Width: 1.5 in. to 20.5 in. (38 mm to 521 mm)
- Rim Diameter: 10 in. to 30 in. (254 mm to 762 mm)
- ALU: 14 in. to 44 in. (356 mm to 1118 mm)
- Maximum Tire Diameter: 44 in. (1016 mm)
- Maximum Tire Width: 20" (508 mm)
- Maximum Tire Weight: 175 lbs. (79 kg)
- Radial and Lateral Runout Accuracy: 0.002" (0.051 mm)
- Imbalance Resolution: 0.01 oz. (0.28 g)
- Placement Accuracy: 512 positions, 0.35°
- Balancing Speed: 300 r.p.m.
- Motor : Programmable drive system and DC motor.
- Dimensions: 66" W x 73" H X 62" D (1,676 mm x 1,854 mm x 1,575 mm)
- Weight: 635 lb. (288 kg)
