Discontinued

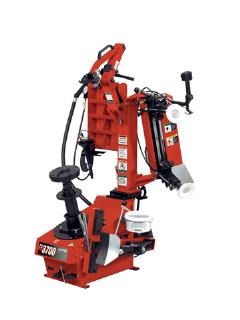

High Capacity Tire Changer

Item Number: HUNTC3710E Supplier: HUNTER ENGINEERING COMPANY

Description

The exclusive features of Hunter's TC3700 Series tire changers operate in unison to easily and safely change the world’s toughest tires.

Features

The center-support clamping table, self-centering quick clamp and adjustable rear column provide the flexibility to easily mount large-diameter tires up to 50 inches
With three easily adjustable clamping heights, the TC3700 requires no flange plates for most reverse wheels and allows the operator to work at the most comfortable position
Variable-speed, high-torque electric drive system operates at a low speed with increased torque to

prevent damage to wheels and tire beads when servicing tough combinations or a faster speed when

servicing less difficult combinations
The exclusive hydraulic bead-loosening roller system gently rolls tires off or on rims. With the simple

two-finger control, a technician can safely hold the tire with the rollers while spinning the wheel to

complete match-mounting procedures
The floating, articulated mounting arm and polymer mounting head follow the rim closely, reducing

stress on the bead
Force Multiplier Arm adds leverage when seating the mounting head and holding it down against the

wheel
An optional Bead Press Arm pushes and holds stiff sidewalls in the drop-center position to ease

demounting or mounting by greatly reducing stress to the bead (standard on HUNTC3715E and HUNTC3715EW)

Includes

HUNRP6G10A23 Force multiplier
HUNRP6G10A11 HM bead lever with protection
HUNRP6713421 Two wheel support plate guards for reverse wheels
HUNRP6G10A67 28-inch bead depressor tail
HUNRP6G100A7 Mechanical bead roller
Quick clamp center shaft with 90-degree lock
V-way moveable column
Three working heights on center support

Accessories

HUNRP6G10A87 RP6-G1000A87 Flange Plates - For plastic-faced wheels and/or reverse wheels where
maximum finish protection is needed
HUN2022011 Wheel Lift Package - Eliminates manual lifting. Polymer-coated wheel-contacts protect the
finish on custom wheels
HUN2022681 Pax Upgrade Kit
HUN2023411 Wheel Adapter - Adds clamping capability for 19.5" wheels with large center holes
HUN2025021 Bead Press Arm

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

NOTE: Because of continuing technological advancements, specifications, models and options are subject to change without notice.

Product Specifications

Weight: 698 lbs.
Clamping System Rotating Speed: 7 & 15 CW / 15 CCW
Torque: 850 ft-lbs.
Electrical Requirements: 220V, 1 ph, 15 A
Air Pressure Operating Range: 115-175 p.s.i.
Tire Diameter: 50"
:
Hydraulic Bead Loosening Roller System:
Maximum Bead Roller Opening Width: 19"
Diameter Range: 10" - 28"
Bead Roller Power - Each Roller: 4,170 lbs. @ 140 p.s.i.
Side Shovel:
Max. Bead Loosening Opening Width: 17"
Shovel Power: 6,600 lbs. @ 140 p.s.i.
Maximum Space Dimensions: 43" L x 72" H x 43"W
