Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued

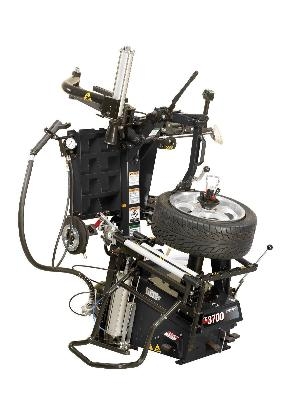

TC3700 TC with Press Arm, Side Shovel, and Wheel Lift
Item Number: HUNTC3715SSW
Supplier:
HUNTER ENGINEERING COMPANY
Description
Center clamping tire changer with two speed electric motor with press arm, side shovel, and wheel lift.
Features
- Standard tool head unit
- New split roller design
- For improved bottom bead demounting and bead breaking
- Automatic locking roller arm assembly upon activation
- Vertically locking head
- Split bead loosening arms
- Two-speed electric motor
- Movable column
- Adjustable work height
- Side shovel
- Wheel lift package
- Press arm
- 220V, 15A, 1ph (L6-20P Plug Provided)
Includes
- Wheel lift
- Side shovel
- Press arm
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Tire Diameter: 50 in.
- Maximum Wheel Width: 19 in.
- Drive: 7 and 15 rpm CW, 15 rpm CCW
- Height: 72 in. (1829 mm)
- Depth: 43 in. (1092 mm)
- Mount / Demount Tool: Polymer Mount Head
- Clamping Type: Center w/Quick Clamp and Cam Plate
- Bead Loosening Type: Rollers or Shovel (Optional)
- Match Mounting Capable: Yes
- Adjustable Clamping Height: Yes
- Rim Diameter Range: 10-28 in.
- Power Requirements: 208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
- Air Supply Requirements: 115-145 psi (8-10 bar)
- Width: 53 in.
- Weight: 930 lbs.
