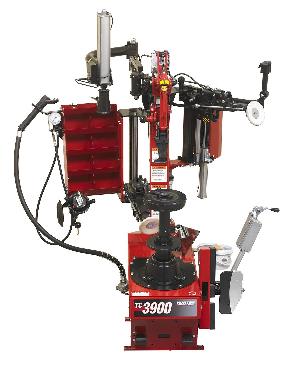

TC3900 Tire Changer w/ Side Shovel

Description

Hunter leverless center-clamp tire changer with side shovel.

Features

• Bead Press Arm
  • Assists mounting difficult assemblies
• Blast Inflation
  • Directs bursts of compressed air to easily seat the bead
• Adjustable column
  • 12" to 28" range
• Motor and Drive
  • 15 and 17-rpm clockwise speeds, 15 rpm counterclockwise speed
  • 850 ft-lbs. of torque
• Leverless Mount Head
  • Positions bead without lever
  • Prevents damage to tire and rim
  • Quick and easy
• Split Bead Roller System
  • Perform all bead breaking upright
  • Match mounting made easy
  • Easy bottom bead demounting
• Intuitive Center Clamp and Adjustable Clamp Support
  • Simple clamping technique for all designs
  • Cam action multiplies clamping force
  • Three height positions
• Match-Mounting Made Easy
  • Hunter's TC3900 eliminate vibration problems, reduce comebacks and increase customer satisfaction. The bead rollers safely hold the tire stationary while the rim is rotated to complete match-mounting
• (Optional) PowerOut™ Bead Loosener
  • Ergonomic control handle makes large assembly service easy
  • Familiar side shovel design with standard protector sleeve
• (Optional) Clamping Adapters
  • Flange Plate for Chrome-Clad and Reverse Wheels
    • Useful for chrome-clad wheels and/or reverse wheels where maximum finish protection is needed
  • Flange Plate for Chrome-Clad Wheels
    • Simplified flange plate for chrome-clad wheels only
  • 19.5" Adapter
    • Adapts large centerbore wheels to center-clamp tire changers
• (Optional) Wheel Lift Package
  • Eases servicing of large assemblies. Allows for more careful handling of expensive wheels.

Accessories

• HUNRP6G10A87      RP6-G1000A87 Flange Plate for Chrome-Clad and Reverse Wheels
• HUNRP6G10A23      RP6-G1000A23 Flange Plate for Chrome-Clad Wheels
• HUN2023411            20-2341-1 19.5" Adapter
• HUN2029441            Wheel Lift Package

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Clamping System Rotating Speed: 7 & 15 CW / 15 CCW
• Torque: 850 ft-lbs.
• Electrical Requirements: 220V, 1 ph, 15 A
• Air Pressure Operating Range: 115-175 P.S.I.
• Tire Diameter: 50"
• Maximum Bead Roller Opening Width: 21"
• Diameter Range: 12-28"
• Bead Roller Power - Each Roller: 4,170 lbs. @ 140 P.S.I.
• Machine Weight: 660 lbs.
• Max Space Dimensions: 70"W x 72"H x 55"D
• Max. Bead Loosening Width with Shovel: 17"
• Shovel Power: 6,600 lbs. @ 140 P.S.I.
