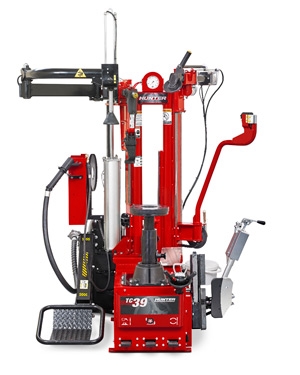

TC39 Center Clamp Tire Changer with Side Shovel, Wheel Lift
Item Number: HUNTC39SSW
Supplier:
HUNTER ENGINEERING COMPANY
Description
The TC39 brings a powerful and easy to use leverless demount head to the same improved platform as the TC37. Features a bead press arm, two bead loosening rollers now with direct indention, and powerful variable-speed motors as standard equipment.
Features
- Bead press arm assists mounting difficult assemblies.
- Leverless mount head - positions beads without levers. Prevents damage to tire and rim.
- Motor and drive - 0-14 rpm variable clockwise speed, 7 rpm counter-clockwise speed. 867 ft-lbs. of torque.
- Blast inflation directs bursts of compressed air to easily seat the bead
- Simple operation single pendant control - all controls at fingertips
- Split bead roller system
- Match-mounting made easy
- Easy bottom bead demounting with roller
- Direct indention eases bead braking on all tires
- Intuitive center-clamp system offers three height positions. Cam action multiplies clamping force.
Includes
- PowerOut™ Bead Loosener (Side Shovel)
- Wheel Lift
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Mount / Demount tool: Polymer Self-inserting Leverless
- Clamping type: Center w/ Quick Clamp and Cam Plate
- Bead Loosening Type: Rollers or Shovel (optional)
- Match mounting capable: Yes
- Adjustable Clamping Height: Yes
- Rim diameter range: 10-26"
- Maximum Tire Diameter: 46"
- Maximum Wheel Width: 19"
- Drive: Variable CW 15 rpm CCW
- Power requirements: 208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
- Air Supply Requirements: 115-145 psi (8-10 bar)
- Shipping Weight with Wheel Lift: 875 lbs. (397 kg)
- Width: 58" (1,473 mm)
- Height: 72" (1,829 mm)
- Depth: 57" (1,448 mm)
