Discontinued
Superseded to HUNTCA34R

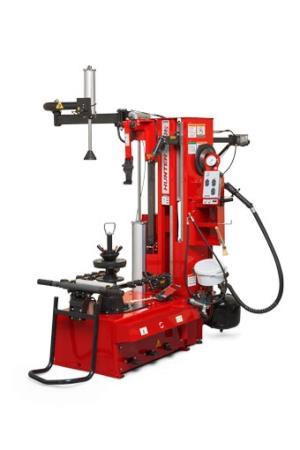

AUTO34S Tire Changer
Item Number: HUNTCA34S
Supplier:
HUNTER ENGINEERING COMPANY
Description
The Hunter Auto34S's exclusive features operate in harmony to easily and safely change the world’s toughest new performance tires and wheels. Its simple operation controls allow for unmatched capability and a short learning curve. The leverless operation eliminates technicians straining to pull over tough beads, damage of beads with thick levers, and rim damage from lever during demounting.
Features
-
Push Button Controls
-
Simple, three-button control
-
Easiest operation in its class
-
-
Memory Function
-
Returns mount head to rim height
-
Saves time and mistakes
-
-
Diameter Control
-
Operate all diameter functions from a single point
-
Retains diameter until reset
-
-
Leverless Tool Head
-
Positions bead without levers
-
Prevents damage to tire and rim
-
-
Bead Press Arm
-
Helps mount difficult tires
-
Holds sidewalls into drop-center position
-
-
Quick Clamp with Cam Plate
-
Safely secures wheel through hub
-
Speeds clamping process
-
-
Mount/Demount Rollers
-
Gently rolls bead from rim
-
No rim contact
-
-
Wheel Lift
-
Space-saving design
-
Easily and safely lift large assemblies
-
-
Wheel Support Plate
-
Handles wide range of wheels
-
Provides extra gripping force
-
Three adjustable work heights
-
Includes
-
Quick Clamp
-
Pin Protector (2)
-
Pin Extension
-
Air Chuck
-
Traction Bar
-
Lubrication Oil
-
Glasses
-
Bead Starting Tool
-
Paste
-
Paste Brush
-
Support Plate Cover (2)
-
Tool head (2)
-
Two-sided Cone
-
Mirror
Accessories
-
HUNRP6G10A87 - Flange Plate Kit - Ideal for plastic-faced wheels or reverse wheels where maximum protection is needed.
-
HUN2023411 - 19.5 Inch Wheel Adapter - Adds clamping capability for 19.5 in. wheels with large center holes.
-
HUNRP6G1A123 - Basic Flange Plate Kit - Ideal for shops that handle plastic-clad wheels without need of reverse applications.
-
HUNRP6G10A73 - PAX® Tire System Kit - Allows servicing Michelin® PAX® systems.
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Requirements: 208-230V, 15A, 50/60Hz, 1 ph NEMA 20 amp plug, L6-20P
- Air Supply Requirements: 115-175 psi (8-12 bar)
- Shipping Weight: 1,150 lbs (521 kg)
- Dimensions: 48"W x 72"H x 80"D (1,219 x 1,829 x 2,032 mm)
- Mount / Demount Tool: Polymer Self Inserting Leverless
- Clamping Type: Center w/Quick Clamp and Cam Plate
- Bead Loosening Type: Upper / Lower Roller
- Match Mounting Capable: Yes
- Adjustable Clamping Height: Yes
- Rim Diameter Range: 10-30 / 12-32 / 14-34 in.
- Maximum Tire Diameter: 50 / 52 / 54 in. (1270 / 1321 / 1372 mm)
- Maximum Wheel Width: 19 in.
- Drive: Variable up to 14 rpm CW 7rpm CCW Torque: 867 ft-lbs (1175 Nm)
