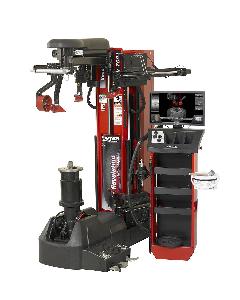

Revolution Full Auto Tire Changer

Description

Changing today's tires and wheels with traditional equipment requires an ever-expanding set of skills. The Revolution has these skills built in -- simplifying the role of the technician. In short, the technician becomes a machine operator. Operators often judge how fast they can complete a single assembly, but tire changing is an all-day process with extreme variation. Against a skilled tire technician, an automatic tire changer may be slightly slower on the simplest assemblies, but in the long run and with today's tires, the time spent changing 100 tires will be less.

Features

• Fully Automatic
  • Same procedure for all tires and wheels
  • Operator experience no longer a factor
• Leverless Tool Head
  • Demounting hook automatically deploys to catch and lift bead
  • No risk of lever damage to operator or rim
  • Demount hook always avoids TPMS sensor - no risk of damage
  • Mount head designed to work with clad, raised spoke and all unique wheel designs to tire and rim
• "Go" Pedal Controls Progress
  • Press "Go" to make selection
  • Hold "Go" to allow sequence to advance automatically
  • Release "Go" to pause at any time
• Space Saving Wheel Lift
  • Spindle lifts tire directly into position
  • Built-in wheel lift reduces overall footprint
• Powered Press Arms
  • Mount virtually any tire
  • Utilize Press Arms only when necessary or set up to always use them
  • Press Arms power clockwise to prevent tire slippage
  • Mount correctly the first revolution and protect TPMS sensors
• Animations & Videos
  • Animations train operator "on the job"
  • Video training for new users
  • Video library of special procedures
• Touchscreen Interface
• Fast Inflation Saves Time
  • Inflation station automatically fills tire to desired pressure
  • 33% faster than traditional foot pedal inflation systems
  • Target air pressure is adjusted on screen
  • Operator stands back from inflation process
• TPMS Protection is Automatic
  • Once the operator sets diameter and positions valve stem/TPMS, the Revolution tracks the sensor during mounting and demounting, avoiding costly damage
• Bead Loosening Rollers are Damage Free
  • Bead loosening rollers work best for widest variety of tires
  • Procedure loosens even the most stuck on soft sidewall tires
  • No risk of TPMS damage
  • No risk of rim damage
• Hydraulic Operation is Powerful and Precise
  • Hydraulic operation with filter means long durable life, much like industrial equipment
  • Hydraulic operation means power and control
  • Each tool can be moved quickly or slowly into position and held as needed

Optional Accessories

• HUN2028431 - Optional adapter adds clamping capability for 19.5 in. and other wheels with large center holes

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Power Requirements: 208-230V, 1 phase, 50/60Hz, 24A, NEMA 30 amp plug , L6-30P, 5,520 watts
• Air Supply Requirements: 125 ± 25 psi (8.6 ± 1.7 bar)
• Mount / Demount Tool: Polymer Self Inserting Leverless
• Clamping Type: Center w/Quick Clamp and Cam Plate
• Bead Loosening Type: Upper / Lower Roller
• Match Mounting Capable: Yes
• Rim Diameter Range: 12 in. - 30 in. (305 mm - 762 mm)
• Maximum Tire Diameter: 50 in. (1,270 mm)
• Drive : Variable up to 15 rpm CW / CCW Torque: 875 ft-lbs (1186 Nm)
• Shipping Weight: 1,800 lbs. (816 kg)
• Width: 72 in. (1,829 mm)
• Height: 78.5 in. (1,994 mm)
• Depth: 78 in. (1,981 mm)
