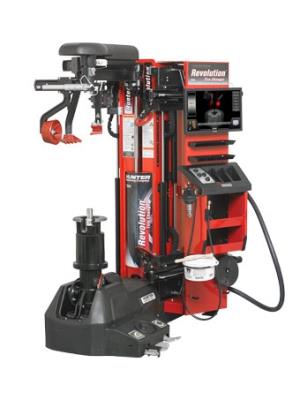

Revolution™ Tire Changer
Item Number: HUNTCR1S
Supplier:
HUNTER ENGINEERING COMPANY
Description
Operators often judge how fast they can complete a single assembly, but tire changing is an all-day process with extreme variation. Against a skilled tire technician, an automatic tire changer may be slightly slower on the simplest assemblies, but in the long run with today's tires, the time spent changing 100 tires will be less.
Features
- Fully Automatic
- Same procedure for all tires and wheels
- Operator experience no longer a factor
- Leverless Tool Head
- Demounts without levers
- Prevents damage to tire and rim
- "Go" Pedal Controls Progress
- Press "Go" to make selection
- Hold "Go" to allow sequence to advance automatically
- Release "Go" to pause at any time
- Space Saving Wheel Lift
- Spindle lifts tire directly into position
- Built-in wheel lift reduces overall footprint
- Powered Press Arms
- Mount virtually any tire
- Powered for maximum control
- Animations & Videos
- Animations train operator "on the job"
- Video training for new users
- Video library of special procedures
Benefits
- Fully automatic operation saves effort and mistakes
- Fully automatic adds safety
- Saves time
- Eliminates experience gap
- TPMS protection is automatic
- Powered press arms assist on demand
- Touchscreen interface for simple use
Includes
- HUNRP6-3784 - Paste
- HUNRP6-1506 - Paste Brush
- HUN1922331 - In-between Cone (2)
- HUN2217132 - Polymer Mount Head (2)
- HUN2216592 - Bead Starting Tool
- Pin Protector (2), 69-1394-2
- Valve Core Remover, 221-759-2
- Valve Puller, RP11-2020688
- Small Polymer Cone (2), 192-225-1
- Double Sided Polymer Cone (3), 192-226-1
- Spare Roller, 111-154-1
- Glasses, 179-15-2
- Rubber Platten Cover (2), 69-1392-2
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Power Requirements: 208-230V, 1 phase, 60Hz, 24A, NEMA 30 amp plug, L6-30P, 5,520 watts
- Air Supply Requirements: 125 ± 25 psi (8.6 ± 1.7 bar)
- Air Consumption: 1 SCFM (27 L/Min)
- Shipping Weight: 1,800 lbs (816 kg)
- Width (W): 52 in. (1,321 mm)
- Height (H1): 78.5 in. (1,994, mm)
- Height (H2): 75.5 in. (1,918 mm)
- Depth (D) - Wheel Lift Up: 67 in. (1,702 mm)
- Depth (D) - Wheel Lift Down: 78 in. (1,981 mm)
- Mount/Demount Tool: Polymer Self Inserting Leverless
- Clamping Type: Center w/ Quick Clamp
- Bead Loosening Type: Upper / Lower Roller
- Match Mounting Capable: Yes
- Rim Diameter Range: 12 in. - 30 in. (305 mm - 762 mm)
- Maximum Tire Diameter: 50 in. (1,270 mm)
- Maximum Wheel Width: 15 in. (381 mm)
- Drive: Variable up to 15 rpm CW / CCW, Torque: 875 ft-lbs (1186 Nm)
