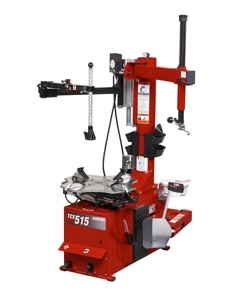

TCX51 Tire Changer, Electric

Description

TCX51 Professional Electric Tire Changer.

Features

• Heavyweight
  • Heaviest model in its class
  • Long service life
• Easy-to-Use Adjustable Tabletop
  • Built-in adjustment system provides 10- to 26-in. clamping range
  • All jaws adjust simultaneously for mistake-free clamping
  • Polished tabletop for easy clean
  • Hi-grip jaw covers add mounting torque and protect wheels
  • Diameter marks aid external clamping
• Class-Leading Rigidity
  • Rigid chassis reduces damage risk and operator effort
• Conventional Configuration
  • Polymer head for mounting and demounting
  • Steel head with polymer insert for wheel protection
• More Torque, More Speed
  • More Torque - Unique 110V or 220V motor generates more torque than popular air or electric models.
  • Faster than popular alternatives- increases productivity
  • Electric tabletop doesn't slow down under load like air motors
• PowerOut Bead Loosener
  • Most powerful bead breaker in its class
  • Fingertip control eases service of large assemblies
  • Three-way adjustable for best rim fit
  • Shovel protectors standard
• Bead press arm
  • Eases clamping, demounting and mounting difficult combinations.
  • Large diameter cylinder is most powerful in its class
  • Press arm pushes tire into drop center for mounting and demounting operations
  • Lifting hook aids the demounting of heavy tires
  • Press cone aids clamping on stiff tires

Includes

• Bead press arm and cone
• Steel mount head with polymer inserts
• Standard bead lever
• Bead lever protectors (polymer)
• Shovel protectors (polymer)
• Hi-grip jaw protectors (polymer)
• Inflation system
• Four storage pockets

Accessories

• HUN2020451 Wheel Lift - eases servicing of large assemblies. Allows for more careful handling of expensive wheels.
• HUN2028851 Storage Shelf- offers convenient storage for your most used tools and accessories.

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

• Electrical Requirements: (110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1ph, NEMA L6-20P
• Air pressure operating range: 110-145 psi
• Air Volume of Inflation Tank: 4.75 gallons
• Wheel Clampimg (nominal) External clamping (min-max): 10in. to 26in.
• Wheel Clamping (nominal) Internal clamping (min-max): 12in. to 28in.
• Table rotation speed Electronic motor: 10CW/ 10CCW
• Maximum Tire Diameter: 46 in.
• Maximum Tire Width: 14 in.
• Bead Loosener Width: 16 in.
• Noise Level: 74 dB
• Machine weight: 760 lbs.
