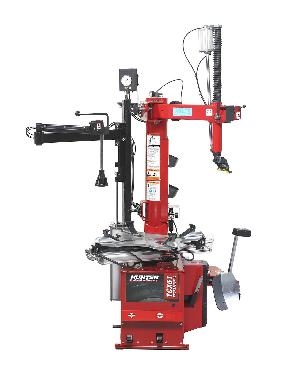

TCX51 Tire Changer with Leverless Mount Head
Item Number: HUNTCX51EL
Supplier:
HUNTER ENGINEERING COMPANY
Description
TCX51 Professional Electric Tire Changer with Bead Press Arm and Leverless Mount Head.
Features
- Heavyweight
- Heaviest model in its class
- Long service life
- Easy-to-Use Adjustable Tabletop
- Built-in adjustment system provides 10- to 26-in. clamping range
- All jaws adjust simultaneously for mistake-free clamping
- Polished tabletop for easy clean
- Hi-grip jaw covers add mounting torque and protect wheels
- Diameter marks aid external clamping
- Class-Leading Rigidity
- Rigid chassis reduces damage risk and operator effort
- Leverless Configuration
- Locks diameter at any position, hand-screw adjustments optional
- Tapered design works with raised-spoke rims
- Lifts bead without use of levers
- More Torque, More Speed
- More Torque - Unique 110V or 220V motor generates more torque than popular air or electric models
- Faster than popular alternatives- increases productivity
- Electric tabletop doesn't slow down under load like air motors
- PowerOut Bead Loosener
- Most powerful bead breaker in its class
- Fingertip control eases service of large assemblies
- Three-way adjustable for best rim fit
- Shovel protectors standard
- Bead press arm
- Eases clamping, demounting and mounting difficult combinations
- Large diameter cylinder is most powerful in its class
- Press arm pushes tire into drop center for mounting and demounting operations
- Lifting hook aids the demounting of heavy tires
- Press cone aids clamping on stiff tires
Includes
- Bead press arm and cone
- Steel mount head with polymer inserts
- Polymer mount head
- Standard bead lever
- Bead lever protectors (polymer)
- Shovel protectors (polymer)
- Hi-grip jaw protectors (polymer)
- inflation system
- Four storage pockets
Accessories
- HUN2020451 Wheel Lift - eases servicing of large assemblies. Allows for more careful handling of expensive wheels.
- HUN2028851 Storage Shelf offers convenient storage for your most used tools and accessories.
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Electrical Requirements: (110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1ph, NEMA L6-20P
- Air pressure operating range: 110-145 psi
- Air Volume of Inflation Tank: 4.75 gallons
- Wheel Clampimg (nominal) External clamping (min-max): 10in. to 26in.
- Wheel Clamping (nominal) Internal clamping (min-max): 12in. to 28in.
- Table rotation speed Electronic motor: 10CW/ 10CCW
- Maximum Tire Diameter: 46 in.
- Maximum Tire Width: 14 in.
- Bead Loosener Width: 16 in.
- Noise Level: 74 dB
- Machine weight: 760 lbs.
