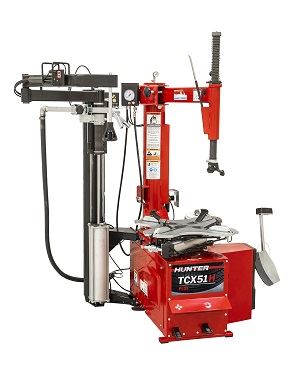

TCX51H Plus Table-Top Tire Changer - Red


Item Number: HUNTCX51PLSRED    Supplier: HUNTER ENGINEERING COMPANY

Features

  • FastBlast™ inflation system
    • Designed with truck and SUV service in mind, the new top-side blast inflation system is optimized to seat even the most difficult tires
    • Large 6.5 gallon air tank features a higher capacity than most portable inflation devices
    • Traditional jaw blast inflation is still standard and effective for most tires
  • Easy-to-use, adjustable tabletop
    • Built-in adjustment system provides 10-26" clamping range
    • All jaws adjust simultaneously for mistake-free clamping
    • Polished tabltop for easy cleanup
    • Hi-grip jaw covers add mounting torque and protect wheels
    • Diameter marks aid external clamping
  • PowerOut™ bead loosener
    • Most powerful bead breaker in its class
    • Fingertip control eases service
    • Three-way adjustable for best rim fit
    • Shovel protectors standard
  • Bead Press Arm
    • Eases demounting and mounting difficult combinations
    • Large diameter cylinder is most powerful in its class
  • Mount and demount head
    • Maximum wheel protection
    • Accommodates newer raised spoke and clad wheels
    • Patented "wing and knob" features keep tire in place better than other heads
  • Class-leading Power
    • Up to 50% higher torque
    • Faster tabletop speed
  • Best in class
    • Heavyweight for less movement when changing tires
    • Non-slip pads keep machine in place

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Electrical: 220V, 1 ph, 6A, NEMA L6-20P
  • Air Pressure Operating Range: 110-145 psi
  • Air Volume of Inflation Tank: 6.5 gallons
  • Wheel Clamping: External: 10-26" / Internal: 12-28"
  • Table Rotation Speed: Clockwise: 7 rpm and 17rpm / Counter-clockwise: 7 rpm
  • Maximum Tire Diameter: 46"
  • Maximum Wheel Width: 14"
  • Bead Loosener Width: 16"
  • Noise Level: 75 dB
  • Weight: 932 lbs.
  • Dimensions: 68" L x 35" W x 36" H
