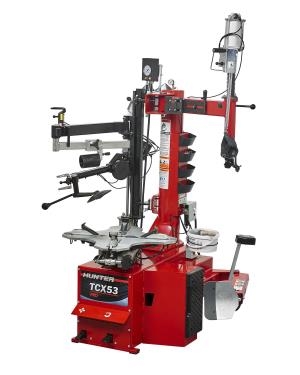

TCX53 PRO Hybrid Leverless Tabletop Tire Changer
Item Number: HUNTCX53PRO
Supplier:
HUNTER ENGINEERING COMPANY
Description
The TCX53PRO combines our premium hybrid leverless head with the familiar format of a swing arm tabletop tire changer. With it's hybrid leverless head, lower locking disc and dual upper press rollers, the TCX53PRO is equipped to handle everything from 19.5s to advanced EV fitments. Hunter's TCX53Pro tabletop tire changer is heavier, more rigid, faster, and more powerful than other tire changers in the same class.
Features
- Extended travel improves demount range and performance
- Unique tilting lip keeps bead in position during demount and rounded profile reduces tire damage risk
- Polymer winged head doesn't require protective inserts, reduces wheel and tire damage risk. Its wing feature keeps beads in position during mount
- Ergonomic controls reduce operator fatigue
- Fully variable speed and travel control
- Familiar mount head design and mounting techniques
- Built-in adjustment system provides 10- to 28-in. clamping range (6-30 in. with optional adaptors)
- All jaws adjust simultaneously for mistake-free clamping
- Twin-cylinder actuators exert more clamping force than single-cylinder designs
- Hi-grip jaw covers increase torque transfer and protect wheels
- Diameter marks aid external clamping
- PowerOut™ bead loosener
- Side shovel has fingertip control to ease service of large assemblies
- Smoothly pulls out stuck beads, saves time in positioning
- Three-way adjustable shovel angle
- Most powerful in the industry
- Powerful motor and drive
- Two speeds forward (7 and 17 rpm) for efficiency or finesse
- Single speed in reverse (7 rpm)
- 220V high-torque motor delivers ample power for difficult conditions
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Height: 84 in. (2134 mm)
- Power Requirements: 220V, 1 ph, NEMA plug type L6-20P
- Air pressure operating range: 110-145 psi (7.6-10 bar)
- Wheel Clamping: External - 10-26 in, Internal - 12-28 in.
- Table Rotation Speed: Clockwise: 7 rpm and 17 rpm Counter-clockwise: 7 rpm
- Tire Diameter: 46 in.
- Rim width maximum: 14 in.
- Bead Loosener Width: 16 in.
- Ship Weight: 925 lbs. , w/wheel lift: 1,011 lbs.
- Maximum Width: 62 in. (1575 mm)
