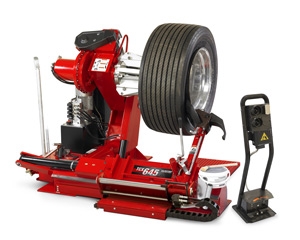

Heavy Duty Tire Changer
Item Number: HUNTCX645HD
Supplier:
HUNTER ENGINEERING COMPANY
Description
The TCX645HD is built from the same strong all-purpose platform as the TCX643HD, but offers several new advantages. The TCX645HD features a hydraulic shuttle for the tool arm. This shuttle saves the operator effort when repositioning the tool arm from front side of the rim to the back side.Standard with every TCX645HD is the previously optional skidder clamp. This clamp is a huge assist in servicing many tougher assemblies.
Features
- Mobile pedestal controls
- Operator-friendly design
- Safe and efficient
- Optional wireless capability
- Powerful and efficient
- 3527 lb. capacity spindle head lifts the wheel into position
- Power pump runs only when the tire changer is in use
- Safety and ease-of-use
- Hydraulic platform moves the wheel into the clamp - a must for larger, heavy tires
- Toolarm hydraulic shuttle saves time and effort
- Tulip-style clamp
- Two-speed rotation operates clockwise and counter-clockwise
- 14-46" standard clamping capacity
- Mount and demount with ease
- Position the wheel pliers and roll the first bead onto the rim
- Reposition the pliers and roll the second bead on
- Bead loosening and demounting can be easy as rolling the tire off of the rim in a single step
- Convenient storage - integrated tool storage on base
- Disc and hook tools - Mount and demount tubed, super single or more difficult-to-handle wheel assemblies
- Service difficult wheel assemblies
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Operating voltage: 230V, 26A, 60 Hz, 3ph
- Pump motor: 2 hp
- Gearbox motor (2-speed): 2 hp
- Min. center holding clamping: 3.94" (10 mm)
- Rim clamping capacity: 14-46" (356 - 1168 mm) up to 56" with optional accessories
- Wheel Assembly Capacity - Maximum Diameter: 90.5" (2299 mm)
- Wheel Assembly Capacity - Maximum Width: 42" (1067 mm)
- Wheel Assembly Capacity - Maximum Weight: 3500 lbs. (1588 kg)
- Speed: 10 rpm and 5 rpm
- Height: 37-61" (940 - 1550 mm)
- Width: 80-94" (2032 - 2388 mm)
- Depth: 64 -83" (1626 - 2108 mm)
- Weight: 1631 lbs. (740 kg)
