Premium Large Cabinet 24" Monitor with HE421CM Sensors

Description

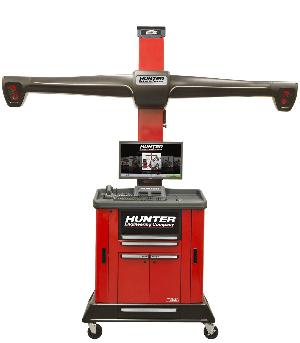

Hunter's WA483 Premium Large Cabinet with 24" Monitor and HUNHE421CM Sensors.

Hunter’s WA400 series premium alignment systems include powerful Intel® processors, running Hunter's latest patented version of WinAlign® alignment software on a Windows® 7 operating system. A full range of cabinet and widescreen display configurations are available to address floor space, work style and other considerations.

Features

• VIN bar code scanning instantly recalls vehicle-specific alignment specifications and alignment reference tools.
• CodeLink® directly "links" the vehicle OBD-II to the aligner to reset steering system sensors, as required by the manufacturer.
• Console design allows for integrated storage and charging for popular accessories.
• TPMSpecs™ software presents thousands of TPMS reset procedures in a comprehensive, tech-friendly format.
• TouchRemote® features allows you to operate WinAlign using your Apple iPhone, iPod touch and iPad (requires free app from iTunes®).
• Drive-on camera (sold separately) allows you to safely and easily position a vehicle on a lift with one technician.

• Detailed color printouts help explain needed parts and repairs and document completed work.

• HUNHE421CM center mount cabinet sensors

  • Manually operated vertical camera lift provides a full range of travel for additional lift height or to work with the vehicle on the floor

  • QuickGrip adaptors

  • High resolution cameras

  • Multiple target storage configurations

  • Vertical camera adjustment

Includes

• Keyboard and mouse
• Steering wheel holder
• Brake pedal depressor
• Wireless remote
• Power Line Filter
• Wireless Codelink
• Barcode Reader
• HUNHE421CM Sensors

Accessories

HUN2025211  Adjustable Tire Hooks. Includes (8) adjustable tire hooks LF-214-138-1, LR-214-140-1, RF-214-139-1, RR-214-141-1 which may be used with QuickGrip adaptors & Three Dimensional TD Targets.
HUN2025281  QuickGrip Storage Brackets. Includes (4) each storage brackets & hardware for storing QuickGrip adaptors & Three Dimensional targets. These brackets may be mounted to cabinets, sensor columns or racks.
HUN2025771  TD Target to SCA Adaptor Kit (for Wheel Off Adjustments). Includes (2) adaptors which mount Three Dimensional targets to the 20-1978-1 Wheel Off Adaptor Kit (sold separately).
HUN2025631  Protective Ring Replacement Kit for QuickGrip Wheel Adaptors. Includes (4) protective rubber rings.
HUN2025641  Protective Ring Replacement Kit for QuickGrip Wheel Spacers. Includes (4) protective rubber rings.
HUN2028561  Roll Around Storage Carts for storing QuickGrip Adaptors & Three Dimensional Targets. Includes (2) carts. Carts hold 2 COA adaptors each. (does not include QuickGrip Storage Bracket kit 20-2528-1, sold separately).

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

• Power Requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
• Processor: Intel Core i3 - 3.1 Ghz (or greater)
• Memory: 4 GB of DDR3 SDRAM
• Hard Drive : 120.0 GB SSD (or greater)
• DVD-RW/CD-RW Drive : Yes - Standard
• Monitor Class: 24" Widescreen LCD
• Wireless Network Module: Yes - Standard
• Operating System : Windows 7
• Supports TD Targets: Yes - Standards
• Supports HD Targets: Yes - Standard
• Console-Top Storage And Charging: Yes - Standard
• Color Ink Jet Printer: Yes - Standard
• Award-Winning WinAlign Software: Yes - Standard
• Vehicle Specifications (30 plus years): Yes - Standard- 2 Years Free Updates
• CodeLink Steering System Reset: Yes - Standard
• VIN Barcode Reader: Yes - Standard
• Complete TPMS Reset Database: Yes - Standard
• Live Ride Height Adjustment: Yes- Standard
• Fully Integrated Alignment: Yes (FIA Equipped Rack Required)
• Modified Vehicle Alignment: Yes - Standard with WinAlign Tuner
• Vehicle Inspection with Photos : Yes - Standard
• Tools and Kits - Basic Catalog : Yes - Standard
• Tools and Kits - Video and Photos: Yes - Standard
• Equipment Video Help / Assistance: Yes - Standard
• HunterNet featuring WebSpecs: Yes - 2 Years Free Standard
• Training and Productivity Aids: 4,000+ Photos, 1,600+ Illustrations , 400+ Videos and Animations
• Supports TouchRemote: Yes - Standard
• Steering Wheel Holder: Yes - Standard
• Brake Pedal Depressor: Yes - Standard
• Wireless Remote: Yes - Standard
• Power Line Filter: Yes - Standard
• Drive-on Camera Compatible: Yes - Standard
• Dimensions: 44"W x 65.5-68.5"H x 23.5"D
