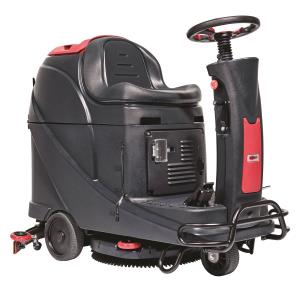

AS530R Mini Ride-On Scrubber

Description

The AS530R is the first mini ride-on scrubber dryer in the user-friendly Viper series, known for providing high cleaning efficiency at attractive prices. With battery and tank capacity to clean for hours, this machine is ready to take on areas of more than 5.000 m2.

Application

Great for shops with 11-25 bays.

Benefits

• An integrated on-board charger enables easy plug-in and battery charge at any outlet
• Water solution level indicator with volume visible on the tank
• Large opening to the 73 liter recovery tank allows easy cleaning
• Built-in squeegee hanging system on recovery tank for easy machine transfer in narrow areas
• Productivity: Working width 53 cm, Squeegee width 73 cm
• Versatility: Cleans tiled floors, vinyl, sealed wood, marble, concrete and other surfaces
• Efficiency: Speed 5.5 km/h, Climb rate 10%
• High performance: Brush pressure 23 kg, Brush speed 160 rpm
• Low sound level: 69 dB(A) enabling daytime cleaning
• Robust design: Front bumper, strong main frame and heavy-duty aluminum squeegee
• User-friendly dashboard: Intuitive display and buttons

Warranty

Five years parts, two years labor, 180 days travel.

Product Specifications

• Vacuum Motor Power: 0.5 hp, 400 W
• Vacuum Lift H20: 48" (1,223 mm)
• Drive Motor: 0.4 hp, 300 W
• Climbing Capacity: 10%
• Battery: (2) 12 V, 140 Ah AGM or (2) 12 V, 130 Ah Wet
• Battery Compartment Size: 13.8" x 15" x 11.8" (35 cm x 38 cm x 20 cm)
• Net Weight (Empty Tanks, without Batteries): 308 lb (140 kg)
• Shipping Weight: 540 lb (245 kg)
• Dimensions: 53.5"L x 23"W x 44"H (136 cm x 58 cm x 112 cm) with squeegee removed
• Brush/Pad Diameter: 20" (53 cm)
• Brush/Pad Pressure: 51 lbs (23 kg)
• Squeegee Width: 30" (73 cm)
• Solution Tank: 19 gal (72 L)
• Recovery Tank: 19.2 gal (73 L)
• Sound Pressure Level: 69 +/- 3 dB A
• Brush Speed: 160 rpm
• Working Speed: 3.4 m/hr (5.5 km/hr)
• Brush Motor: 0.6 hp, 450 W
