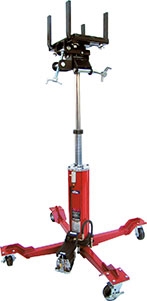

3/4T Capacity Telescopic Under Hoist Air/Hydraulic Transmission Fast Jack


Item Number: NRI72475    Supplier: NORCO INDUSTRIES INC

Description

3/4T Capacity Telescopic Under Hoist Air/Hydraulic Transmission Fast Jack

Features

  • U.S. Patent No. 7,171,807
  • Air/hydraulic foot pump provides hands free operation and easy, convenient lifting.
  • Metered pump valve provides safe lowering of load.
  • Fully adjustable universal saddle with hand adjustable corner brackets and safety chain.
  • Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
  • Two-stage flash chromed rams inhibit rust from entering hydraulic system.
  • Comes with a larger 10-1/4” x 15-1/8” saddle plate and four adjustable “L”-shaped locating bars.
  • Wide base with four easy rolling 4” diameter swivel ball bearing caster wheels (two are locking caster wheels) provides stability and easy maneuvering in its lowered position.
  • The wheels, made from a phenolic resin, offer high impact resistance and are non-marking for protection of tile and epoxy floors.

Warranty

Product is warranted against defects in materials and workmanship for the life of the product.

 WARNING: Cancer & Reproductive Harm. www.P65Warnings.ca.gov

Product Specifications

  • Low Lift Height: 36.5"
  • High Lift Height: 75.25"
  • Base Dimensions: 36" x 36"
  • Shipping Weight: 196 lbs.
