Discontinued

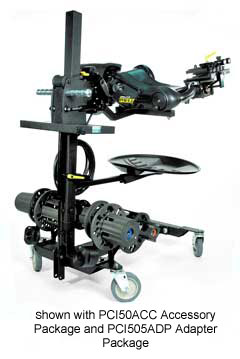

PFM9.2 DRO Computerized Brake Lathe Package- 3 Adapter

Item Number: PCI923ADP Supplier: PRO-CUT INTERNATIONAL

Description

The PFM 9.2 DRO On Car Brake Lathe package includes Accessory Kit and 3 Adapter Package.

The only "true" computerized, self compensating on-car lathe. Patented push button technology calibrates the lathe to the vehicle hub independant of operator input. This lathe eliminates the opportunity for setup errors to occur. Large 1.0 hp continuous duty motor delivers the torque needed for servicing 4 x 4's and AWD.

Features

Digital Run Out (DRO) - Precision matched on-board rate sensor and a "Live" digital run-out display to increase accuracy and help verify that you get a "Perfect Brake Job" every time! DRO also includes ROI tracking capability to validate your investment
Base Fixed-Post Trolley - Disc lock system with dual sealed bearings alow zero gravity movement with full lock-down capability
Speed-Lock Cutting Head - Cutting head can be moved and set with one hand

Includes

PCI92BASEIBT PFM9.2 Lathe
PCI503ADP 3 Adapter (687, 688, 694) Package
PCI50ACC Accessory Kit

Accessories
PCI502ADP 2 Adapter (687, 688) Package
PCI504ADP 3 Adapter (687, 688, 694, 695) Package
PCI505ADP 5 Adapter (687, 688, 694, 695, 691) Package
PCI506ADP 6 Adapter (681, 687, 688, 691, 694, 695) Package
PCI507ADP 7 Adapter (683, 687, 688, 694, 695, 691, 935) Package
PCI508ADP 8 Adapter (681,683, 687, 688, 694, 695, 691, 935) Package
PCI501200UPG G2X Upgrade Package - Upgrades basic lathe to DRO G2X with live run-out and thickness measurement
PCI501360 GYR Upgrade - Upgrades DRO G2X to full GYR with live feedback and computer direction and reporting.

Warranty

One (1) Year

Product Specifications

Maximum Rotor Thickness: 1.75" (44mm)
Minimum Rotor Thickness: 0.2"
Maximum Rotor Diameter: 17.2" (437mm)
Minimum Rotor Diameter: 4" (102mm)
Maximum Depth of Cut: 0.020" per side (0.38mm)
Spindle Speed: 123 r.p.m.
Carriage Speed: 0.005" / rev. (0.12 mm/rev)
Electrical Supply: 120V / 1 HP / 60 Hz
Motor: 1.0 hp
Weight: 127 lbs. (57.60 kgs)
Shipping Weight: 135 lbs. (61.23 kgs)
