Discontinued
PFM9.2 DRO Computerized Brake Lathe
Description

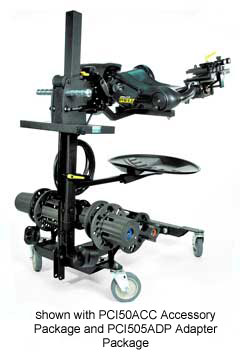

The PFM 9.2 DRO On Car Brake Lathe comes with a precision matched on-board rate sensor and "live" digital run out!
The only "true" computerized, self compensating on-car lathe. Patented push button technology calibrates the lathe to the vehicle hub independant of operator input. This lathe eliminates the opportunity for setup errors to occur. Large 1.0 hp continuous duty motor delivers the torque needed for servicing 4 x 4's and AWD.
NOTE: This item is for the lathe only. Purchase of a new lathe requires the purchase of the PCI50ACC Accessory Kit and one adpater package.
Features
- Digital Run Out (DRO) - Precision matched on-board rate sensor and a "Live" digital run-out display to increase accuracy and help verify that you get a "Perfect Brake Job" every time! DRO also includes ROI tracking capability to validate your investment
- Base Fixed-Post Trolley - Disc lock system with dual sealed bearings alow zero gravity movement with full lock-down capability
- Speed-Lock Cutting Head - Cutting head can be moved and set with one hand
Includes
- PFM9.2 Lathe
- Base Fixed-Post Trolley
- Slide Lock Cutting Head
- 9.2 Trolley Arm
- 9.2 Trolley Shock
- 2192 Trolley Instructions
Accessories
PCI50ACC Accessory Kit
PCI502ADP 2 Adapter (687, 688) Package
PCI503ADP 3 Adapter (687, 688, 694) Package
PCI504ADP 4 Adapter (687, 688, 694, 695) Package - Toyota recommended
PCI505ADP 5 Adapter (687, 688, 694, 695, 691) Package
PCI506ADP 6 Adapter (681, 687, 688, 691, 694, 695) Package
PCI507ADP 7 Adapter (683, 687, 688, 694, 695, 691, 935) Package
PCI508ADP 8 Adapter (681,683, 687, 688, 694, 695, 691, 935) Package
PCI501200UPG G2X Upgrade Package - Upgrades basic lathe to DRO G2X with live run-out and thickness measurement
PCI501360 GYR Upgrade - Upgrades DRO G2X to full GYR with live feedback and computer direction and reporting.
Warranty
One (1) Year
Product Specifications
- Maximum Rotor Thickness: 1.75" (44mm)
- Minimum Rotor Thickness: 0.2"
- Maximum Rotor Diameter: 17.2" (437mm)
- Minimum Rotor Diameter: 4" (102mm)
- Maximum Depth of Cut: 0.020" per side (0.38mm)
- Spindle Speed: 123 r.p.m.
- Carriage Speed: 0.005" / rev. (0.12 mm/rev)
- Electrical Supply: 120V / 1 HP / 60 Hz
- Motor: 1.0 hp
- Weight: 78 lbs. (35 kgs)
- Shipping Weight: 85 lbs. (85 kgs)
