Picoscope Automotive Pressure Transducer Kit wth App
Description
The KP355 TMS WPS500X Pressure Transducer kit, combined with the PicoScope Automotive Oscilloscope, you can perform quick and accurate pressure analysis on many automotive systems. Operating in a range from -15 psi up to 500 psi, it allows accurate measurements of previously unseen events including compression, airflow, valve timing, backflow and more.
Typical Applications
- In-cylinder pressure tests
- 4-stroke cycle visibility
- Exhaust gas pulsations
- Intake manifold pressure fluctuations
- Crankcase pressure measurements
- Diesel injector back leakage tests
- Fuel pressure tests up to 500 psi
Features
- Three pressure ranges from -15 psi to 500 psi (34 bar)
- Ultra-fast 100 µs response time
- Zoom function for enhanced analysis capabilities
- Rechargeable LiPo battery for extended plug-free usage
- Integrated pressure relief / bleed-off valve
- Auto zeroing
- High noise immunity
- Temperature compensate

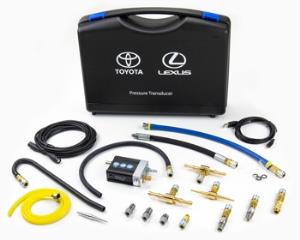

Includes
PIOPP972 Vacuum Tip
PIOPP973 Inline T adapter, small
PIOPP974 Inline T adapter, medium
PIOTA071 WPS500X Pressure transducer
PIOTA130 USB cable (PIOTA081) and BNC cable
PIOTA085 Vacuum hose adapter
PIOTA086 Bleed hose
PIOTA087 Exhaust adapter
PIOTA129 Universal vacuum hose adapter
PIOTA142 Foster 2 Series Coupler
PIOTA212 Standard compression hose
PIOTA217 14mm short reach adapter
PIOTA218 14mm deep reach adapter
PIOTA219 12mm deep reach adapter
PIOTA456 Supra Fuel hose Adapter
PIOTA457 Supra oil pressure canister hose
PIOTA458 TMS fuel hose kit, 09268-45015-01
PIOTA460 TMS fuel hose kit, 09268-45101-1A
PIOPA179 Carry Case
WPS500X user’s manual (DO157)
Warranty
Two years
Product Specifications
| Inlet: | |||
| Pressure Ranges | Range 1 | Range 2 | Range 3 |
| –15 to +500 psi | –15 to +50 psi | –5 to +5 psi | |
| –1 to +34.5 bar | –1 to +3.45 bar | –0.345 to +0.345 bar | |
| Connector | Male push-fit | ||
| Output: | |||
| Scaling | 1 V/100 psi | 1 V/10 psi | 1 V/1 psi |
| (6.89 bar) | (0.689 bar) | (0.0689 bar) | |
| Offset (typical) | Auto-zeroing | ||
| Connector | BNC female, fits Pico Technology cable TA098 | ||
| Performance: | |||
| Accuracy | 1% of scale | 1% of scale | 5% of scale |
| Response time (10% to 90%) |
100 μs | 100 μs | |
| Power supply: | |||
| Type | Built-in LiPo battery, not user-serviceable | ||
| Charging current | 500 mA (max.) at 4.75 V to 5.25 V (from USB charger cable) | ||
| Charging connector | USB mini, fits Pico Technology cable TA081 | ||
| Ambient Operating Temperature: | 0 to 60 °C (32 to 140 °F) max. | ||
| Ambient Storage Temperature: | 0 to 60 °C (32 to 140 °F) max. | ||
| Environmental Protection: | Splash-resistant to water, gasoline and diesel (Not immersion-proof) |
||
| Weight: | 11.7 oz (332 g) | ||
| Dimensions: | 5.2 x 2.9 x 1.2 in. (133 x 74 x 30 mm) | ||
| Compliance: | Electromagnetic Compatibility (EMC) Directive 2014/30/EU FCC part 15 class A |
||
