TMS KP202 2 Channel PicoScope Automotive Oscilloscope Kit

Item Number: PIOPS2CH Supplier: PICO TECHNOLOGY

Description

The Pico Automotive Diagnostics Kits work with your PC to measure and test virtually all of the electrical and electronic components and circuits in any modern vehicle including:

Ignition (primary and secondary)
Injectors and fuel pumps
Starter and charging circuits
Batteries, alternators and starter motors
Lambda, airflow, ABS and MAP sensors
Electronic throttle control
CAN bus, LIN bus and FlexRay

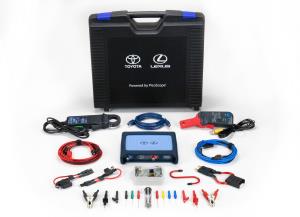

Includes

(1) MI168 S Hook
(2) PA038 QuadroPack Telescopic Plastic Case, Clear
(1) PA150 Toyota branded Carry Case
(1) PP264 Current Clamp (60A AC/DC) with BNC
(1) PP408 Fuse Extension Leads
(1) PR276 TMS PS4225-12 2 Channel Scope
(1) TA001 Multimeter Probe, Black
(1) TA002 Multimeter Probe, Red
(1) TA003 Small Crocodile Clip, Black
(1) TA004 Small Crocodile Clip, Red
(1) TA008 Electronics Acupuncture Probes
(1) TA125 Premium Test Lead: BNC to 4mm, Blue, 3 meter
(1) TA126 Premium Test Lead: BNC to 4mm, Red, 3 meter
(1) TA157 Battery Cllip 4mm Socket, Red
(1) TA158 Battery Clip 4mm Socket, Black
(1) TA167 BNC 2000A/200A Current Clamp
(1) TA206 Maxi Fuse Extension Lead

Warranty

Two years on scope; one year on accessories

Note:
PC and Power Requirements: Desktop or laptop running windows 7,8, or 10 (recommended)
Powered from PC USB port (USB 3.0 / 3.1 recommended; USB 2.0 compatible).

Product Specifications

Bandwidth: 20 MHz (10 MHz on ±50 mV range)
Channels: 2
Vertical Resolution : 12 bits
Enhanced Vertical Resolution: 16 bits
Accuracy: ±1% of full scale
Sensitivity: 10 mV/div to 40 V/div
Input ranges (full scale): ±50 mV to ±200 V in 12 ranges
Input Characteristics: 1 MΩ in parallel with 24 pF
Input Type: Floating, BNC connector
Input Common Mode: 30 V
Input Coupling: Software selectable AC/DC
Overvoltage Protection: ±250 V (DC +AC peak) on single input
Maximum Sampling Rate: 1 Channel in use: 400 MS/s; 2 Channels in use: 200 MS/s; 3 or 4 Channels in use: 100 MS/s
Maximum Sampling Rate (USB streaming): 20 MS/s (USB 3.0); 10 MS/s (USB 2.0)
Buffer Memory: 250 M samples
Waveform Buffer: Up to 10,000 waveforms
Timebase Ranges: 100 ns/div to 5000 s/div
Triggers - Source: Any input channel
Basic Triggers: Auto, repeat, single, none
Advanced Triggers: Rising edge, falling edge, edge with hysteresis, pulse width, runt puls, dropout, windowed
Maximum Pre Trigger Delay: Up to 100% of capture length
Maximum Post Trigger Delay: Up to 4 billion samples
Spectrum Analyser Frequency Range: DC to 20 MHz
Spectrum Analyser Display Modes: Magnitude, peak hold, average
Operating Environment Temperature Range: 0°C to 40°C (15°C to 40°C for quoted accuracy)
Operating Environment - Humidity: 5% to 80% RH, non-condensing
Storage Environment: -20°C to +60°C
Storage Environment - Humidity: 5 to 95% RH, non-condensing
Dimensions: 190mm x 160mm x 40mm (7.5" x 6.3" 1.6")
Weight: <900 g (approx 2 lbs)
