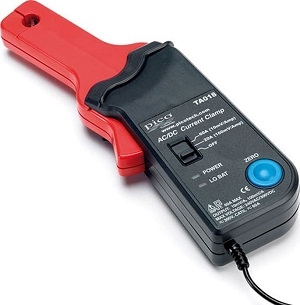

Current Clamp 60A AC/DC with BNC
Item Number: PIOTA018
Supplier:
PICO TECHNOLOGY
Description
The AC/DC mA Current Clamp is a transducer which will allow your multimeter to measure low electrical or/and electronic current up to 60 amperes AC/DC, with a frequency response up to 20kHz. When measuring current with this clamp, there is no need to break a circuit or to disturb the insulation. The extended measurement jaws allow performing measurements in a narrow space. When measuring DC current, a simple operating push button is designed for zero adjustment. The clamp adaptor is applicable to leakage detection or monitoring.
Warranty
One (1) year
Product Specifications
- Captured Conductor Size: 9 mm maximum
- Low Battery Indicator: Red LED Lighting
- Operating Temperature: 0°C to 40°C, 70% R.H.
- Storage Temperature: -20°C +70°C, 80% R.H.
- Battery Type: 9V DC, NEDA 1604, 6F22, 006P
- Dimensions: 195 mm x 70 mm x 33 mm
- Output: Cable with BNC plug
- Weight: 1 lb.
- Electrical: At 23± 5°C, 70% R.H. maximum
- 1mV/10mA: 10mA to 20A DC or rms AC for 200mV range of the oscilloscope
- 1mV/100mA: 10mA to 20A DC or rms AC for 200mV range of the oscilloscope
- 1mV/100mA: 20A to 60A DC or rms AC for 2V range of the oscilloscope
