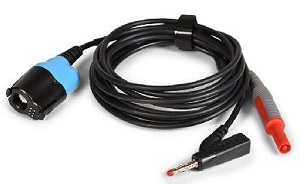

PicoBNC+ 10:1 Attenuating Lead
Description
The TA506 PicoBNC+ 10:1 Attenuating Lead replaces the traditional oscilloscope probe termination with 2 types of popular connectors to give technicians greater flexibility in selecting the type of probe tips they use to acquire signals. This 3-meter-long lead includes both a non-stacking, shrouded 4 mm banana positive connector and a stacking, non-shrouded 4 mm banana Earth connector to facilitate the use of our broad range of 4 mm clips and adaptors and to make it possible to reconfigure the probe to fit into tighter spaces as needed.
Designed to handle a 400 V peak max working voltage with a 600 V peak transient overvoltage, the TA506 is ideal for measuring primary ignition and injector switching voltages, as well as the inductive voltages measured on some types of speed and position sensors. Due to its higher impedance, it is also suitable for the measurement of sensitive circuits, such as those from knock sensors. In addition, the high bandwidth of the TA506 is perfectly suited for monitoring high-speed signals including FlexRay and CAN FD.
Warranty
One year
 | WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov |
Product Specifications
- Dimensions: 3 m long
