Pro Spot MIG Welder 3 Nozzle
Description

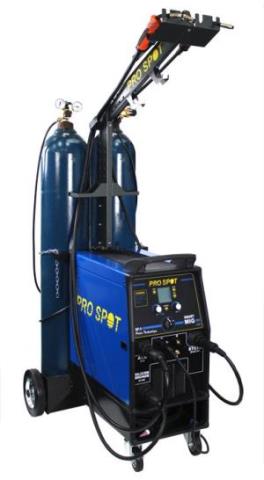

he SP-5 Smart MIG has three MIG torches that can be set up for three different base metals (Aluminum, Silicon Bronze and Steel). The shielding gas and weld program with the appropriate synergic curve automatically switch when pulling the trigger. The SP-5 is ideal for body shops welding stainless steel, aluminum and zinc coated steel. In synergic mode, the microprocessor controls optimal arc stability and weld quality. The SP-5 also comes equipped for TIG and MMA/stick welding. MIG and TIG welding can be done in continuous or pulse mode. The SP-5 Smart MIG welder has a maximum power output of 200 A.
Features
- Auto Switching - To switch the welding for different base metals, simply pick up the appropriate torch and pull the trigger, the microprocessor and weld programs do the rest.
- Mig Welding - Features three MIG welding torches and wire spools. Also includes preloaded weld programs and synergic curves for all common welding situations in automotive repair
- TIG Welding - Everything needed for TIG welding is included. TIG welding can be done in continuous or pulse mode
- Stick Welding - Everything needed for MMS/stick welding is included
- Pulse MIG Comparison - The main difference between the three pulse MIG series welders is the number of torches
Warranty
Warranted for a period of one (1) year after delivery of the Pro Spot product to purchaser. The electronic control unit shall be warranted for a period of two (2) years on a factory exchange basis.
Product Specifications
- Input Voltage: 208 - 240V 50/60 HZ, 400 - 420V 50/60 HZ, 460 - 480V 50/60 HZ
- Amps / Volts, Min - Max - MIG: 20A / 15V - 200A / 24V
- Amps / Volts, Min - Max - TIG: 5A / 10V - 200A / 18V
- Amps / Volts, Min - Max - MMA: 5A / 20.2V - 200A / 28V
- Protection: IP 22
- Insulation: H
- Weight - approximate: 200 lbs.(90 kg)
