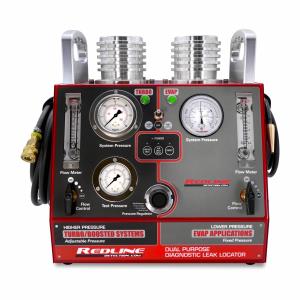

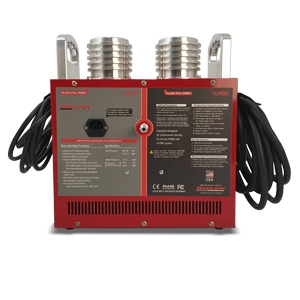

Dual Purpose Diagnostic Leak Locator with Accessory Kit (Smoke Machine)

Description

For the first time ever, technicians now have the ability to do ALL types of diagnostic leak detection with a single machine: Both low pressure for traditional vehicle EVAP and general repair; and variable high pressure for turbo, diesel, and heavy duty testing. Use either visible vapor or air only. All with ONE innovative, state-of-the-art piece of equipment.

This new technology gives technicians the ability to switch from low pressure to high pressure, to have access to the full range of testing pressures for different applications, with literally the flip of a switch.

Made for ease-of use, this new all-in-one unit is engineered to quickly test the integrity of EVAP systems, intakes, turbo, boosted, low and high pressure systems, all without dyes or contaminants so it’s safe for the vehicle, safe for the technician and safe for the environment. Variable pressure, variable flow replicate the full load of a running vehicle and allow the technician to adjust flow as needed to find minuscule faults in every type of vehicle, even heavy duty trucks. This technology dramatically increases shop efficiency by giving the ability to switch from low pressure to high pressure, with the flip of a switch.

Applications:

• Quickly test the integrity of:
  • Complete fuel vapor recovery (EVAP) system
  • Complete exhaust system (diesel or gasoline)
  • Complete intake system (gasoline, alternative fuel, diesel)
  • Turbo and turbo housings
  • Charge air coolers
  • All boosted engines
  • Diesel particulate filter systems
  • Diesel emission system
  • All without dyes or contaminants so it’s safe for the vehicle, safe for the technician and safe for the environment

Accessories

RLD960039  Vapor Producing Fluid

Warranty

Smoke Chamber - Lifetime
Dual Leak Locator - One year

Product Specifications

• Power Supply: 110-230V AC
• Pressure Supply: Compressed Air
• Output Pressure (EVAP) : 11 - 14 in/H2O .47 PSI (.032 BAR)
• Output Pressure (TURBO): Up to 20+ PSI (Up to 1.4+ BAR)
• Operating Temperature: 0°F to 140°F (-17°C to 60°C)
• Operating Humidity: No Restrictions
• Operating Altitude: No Restrictions
• Operating Modes: Smoke Cycle / Air Only Cycle
• Housing Material: Steel
• Smoke Chamber Material: Billet Aluminum
• Smoke Chamber Assembly: Bolted
• Dimensions: 13.5" x 9" x 15" (34.29cm x 23cm x 38cm)
• Weight: 27 lbs. (12.25 kg)
