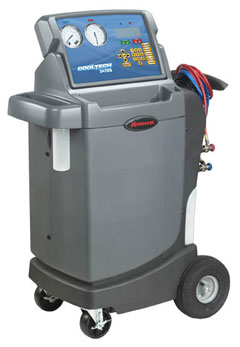

Item shown may not be actual product.
Product and price information are subject to change without notice.

Discontinued
Superseded to ROB34788NI

R134a Refrigerant Management System

Item Number: ROB34788 Supplier: BOSCH AUTOMOTIVE SERVICE SOLUTIONS

Description

The Cool-Tech combines simple operation with superior accuracy. It recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately. Fully automatic function lets you recover, vacuum, leak test, charge, and then walk away. Monitors the vacuum level after an evacuation, and informs the technician of a possible leak in the vehicle's A/C system. The unit maintains a user selectable amount of refrigerant in an internal vessel, and signals when it's time to change the supply tank. Eliminates damaging air without any monitoring of gauges or opening of valves. Automatically drains system oil captured during recovery, and the display reminds you to empty the bottle. Graduations on the container clearly show you how much oil needs to be replaced.

Features

Vacuum leak test
Automatic refrigerant refill
Automatic air purge
Automatic oil drain
Refrigerant charging
Refrigerant management
Vacuum function

Includes

ROB34724 Filter-Drier
ROB13172 Maintenance kit
Calibration weight
Service coupler set (high and low side couplers)
Service hose set (high and low side hoses)

Accessories

ROB13203 Vacuum pump oil - case of 12 quarts
ROB13204 Vacuum pump oil - case of 4 gallons

NOTE: Use this item along with ROB16910 as a replacement for ROB342000.

Warranty

One year. This warranty does not apply if: The product, or product part, is broken by accident. The product is misused, tapered with, or modified. The product is used for recovering or recycling any substance other than the specified refrigerant type. This includes, but is not limited to, materials and chemicals used to seal leaks in A/C systems.

Product Specifications

Operating Range: 11° to 49° C (50° to 120°F)
Recycling Filter-drier: 43 cu. in. spin-on type
Pump Free Air Displacement: 3 c.f.m. (142 L/min)
Shipping Weight: 106.6 kg (235 lbs.)
Voltage: 115V 60 Hz
Dimensions: 44"H x 34"W x 23"D
Refrigerant Container On-board: 14 kg (30 lb.) vessel (source tank not included)
