$15,907.32 *
*log in for dealer pricing

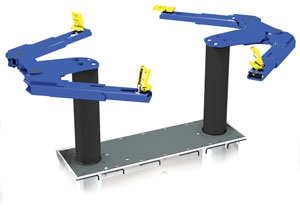

10K Inground SmartLift® Trio™ w/ TA Adapters & Shockwave
Description
10,000 LB In-Ground SmartLift® Trio™ with Truck Adapters offers the superstructure that gives you three ways to increase productivity with a sleek new design:
1) Lower Profile Yoke = Greater Drive Thru Clearance
2) New 2-Piece, 3-Stage Arm Operates Like Three |
3) 18% Greater Reach in a Shorter Arm!
Inground lifts offer a more space-efficient solution for your shop. With Rotary's inground SmartLift®, there are fewer obstructions in the shop, allowing your technicians more room to move about. The SmartLift® is completely encased in a polymer housing, protecting the lift from corrosive elements and containing any leaks if they occur.
Features
- Recessed Bolts Provide a Smoother Drive-Over
- Improved Drive Over Pad is Lower with a more contoured profile that allows for easier entry and exit to service bays.
- New Storage Compartment provides easy access for technicians to keep small parts and tools during vehicle service.
- Patent Pending Multi-Position Adapter Slider adjustment easily slides to a pinpoint location.
- Totally contained system uses 95% less oil than conventional in-ground lifts
- Stainless steel cylinder and fittings and polymer housing for maximum corrosion resistance
- An 8½" piston diameter for greater stability
- Polymer rubber pad adapters that are vertically adjustable and have stackable inserts for a precise lift
- ALI and ETL certification
Accessories
-
ROTFJ7880 Adapter extension kit for SUVs and trucks
Warranty
One year for parts and labor. Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)
Product Specifications
- Electrical Usage Ø: .01 kWh per Cycle
- Rise (with adapter in high step position): 75-1/4" - 81 3/8" (1911 mm - 2067 mm)
- Width Overall : 108-1/4" (2749 mm)
- Drive-thru Clearance: 88" (2235 mm)
- Reach (min): 19-1/4" (489 mm)
- Reach (max): 41-1/4" (1047 mm)
- Reach (overall arm min.): 54-1/2" (1378 mm)
- Reach (overall arm max.): 99" (2515 mm)
- Minimum Adapter Height: 4-1/4" (108 mm)
- High Step Height (measured to Polymer Pad): 5-3/8" (136 mm)
- Lifting Capacity Overall: 10,000 lbs. (4536 kg)
- Lifting Capacity (per arm): 2,500 lbs. (1134 kg)
- Guide Plunger Diameter: 8-1/2" (216 mm)
- Motor: 2 hp
- Voltage Single Phase: 110V
- Time Of Full Rise / Descent: 25 Seconds / 19 seconds
- Min Bay Size: 11' x 24' (3353 x 7315 mm)
