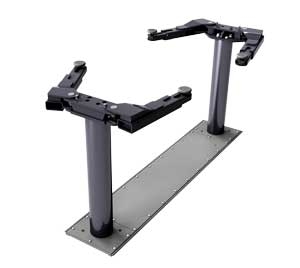

SLW210-RA 10K SMARTLIFT Wide Inground Lift, Round Adapters
Item Number: ROTSLW210IN0G0
Supplier:
ROTARY LIFT
Description
Rotary's SMARTLIFT WIDE inground lift design is perfect for servicing all vehicle types including electric cars and trucks. The obstruction-free, wide design provides greater under vehicle access and reduces the risk of contact between the lift and vehicle parts.
Features
- Lifting Versatility with Next-Level Service
- BEV battery removal - wide plungers open the access for removal of underbody covers and electric vehicle batteries.
- Service low profile exotic cars
- Remove truck bodies off frames
- Space-saving footprint creates greater vehicle access while working around the lift.
- One Touch Controls, compact and ideal for mounting in work benches.
- Includes Liquid Detection System (LDS).
- Environmentally responsible
- Self-contained mechanical, hydraulic and electrical components
- Proven SMARTLIFT Technology
- Rod seal cylinders that do not exchange air with containment
- All hydraulic and air components serviceable without plunger removal
- Polymer molded containment won't degrade
- Patented Trio Arms®
- Low profile arms improve clearance and reduce risk of vehicle damage.
- Two-piece multiple adjustment arm design equals faster spotting speed with greater reach, interchangeable with adapter options (FA, RA, TA).
- Allows for Quick positioning of the adapter to the vehicle pickup points without moving heavy arms
- Integrated adjustment easily slides the adapter to the vehicle contact location saving technicians additional set-up time
- Available in red, blue, or black - must specify color at time of order.
Includes
- Patented TRIO arms
- Multi-position wheel spotting dish
- RA round rubber adapters
Warranty
One year labor, two years parts when installed by Rotary authorized installer.
Product Specifications
- Lifting Capacity: 10,000 lbs.
- Minimum Arm Reach: 19-11/16"
- Maximum Arm Reach : 44-1/2"
- Rise / 71" Cylinder Stroke: 75-3/16" - 76-3/8"
- Width Overall : 119-5/8"
- Drive-Thru Clearance: 88-1/16"
- Minimum Adapter Height: 4-1/4"
- Ceiling Height Minimum: Equals rise with tallest adapter extensions plus height of the vehicle
- Voltage: 208-230V
- Electrical Usage Ø: .01kWh per cycle
- Guide Plunger Diameter: 8-1/2"
- Time of Full Rise / Decent: 53 Seconds / 24 Seconds
- Minimum Bay Size: 11' x 24' (3353 X 7315 mm)
