$11,358.36 *
*log in for dealer pricing

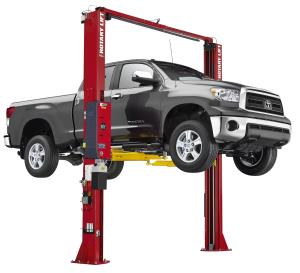

12,000 lb Symmetrical 2-Post Lift with Truck Adapters

Item Number: ROTSPO12TA Supplier: ROTARY LIFT

Description

For decades, Rotary® has been the recognized leader in vehicle service lifts. This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market. With Rotary lifts, you have the service and support you need. Our world-wide network of service companies are always standing by.

Most of our lifts are third party tested by ETL and certified by ALI to meet or exceed strict ANSI standards such as cable cut and deformation tests. Be sure the lift you buy has the gold ALI/ETL label that assures your lift has been tested to meet these standards.

Features

True symmetric column design
“Double S” column design with single piece construction provides a channel for the bearings to travel in, maximizing the strength of the column and surface contact area of the bearing
Single point lock release which releases the locks at the same time
Two full stroke cylinders, one in each column
Arm restraints on each arm engage when the vehicle is lifted
Third party certified

Warranty

One (1) year for parts and labor. Additional one-year parts warranty if installed by a Rotary Authorized Installer (RAI)

Product Specifications

Rise: 72-3/4" - 75-3/4" (1848 mm - 1924 mm)
Height Overall: 13' 8" (4166 mm)
Overall Width: 11' 5-5/8" (3496 mm)
Drive-thru Clearance: 102-3/8" (2600 mm)
Floor to Overhead Switch: 13' 3-1/8" (4042 mm)
Reach (front arm min.): 27-1/2" (699 mm)
Reach (front arm max.): 59" (1499 mm)
Rear (rear arm min.): 27-1/2" (699 mm)
Rear (rear arm max.): 59" (1499 mm)
Minimum Adapter Height: 4-3/4" -7-1/4" (121 mm - 184 mm)
Low Step Height: 8-1/4" - 10-3/4" (210 mm - 273 mm)
High Step Height: 9-3/4" - 12-1/4" (248 mm - 311 mm)
Inside of Columns: 113-3/8" (2880 mm)
Cylinder Height at Full Rise: 11' 10-3/4" (3626 mm)
Lifting Capacity: 12,000 lbs. (5443 kg)
Motor / Voltage: 208V-230V, 2HP
Time of Full Rise: 60 seconds
Ceiling Height Required (Standard): 13' 9" (4191 mm)
Maximum Load per Arm: 3,000 lbs. (1360 kg)
Minimum Bay Size: 12' x 26' (3658 mm x 7925 mm)

Equipment Cost:		$
		($10,000 minimum)
24 Months	36 Months	48 Months	60 Months	72 Months	84 Months
-	-	-	-	-	-

This lease offer is structured with $1.00 purchase option at the end of lease term and requires first and last payment in advance and a one-time $300 documentation fee. Payments are calculated net of any sales or local tax. This quote is subject to credit review and approval and is subject to change based upon market conditions. Note: Financing is for equipment that is to be used for business purposes. Quoted payments do not include Taxes, Maintenance, or Insurance.
