$11,760.12 *
*log in for dealer pricing

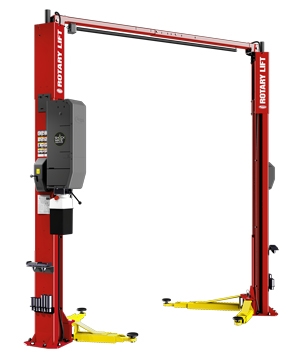

10K Two-Post Asymmetric Lift with All-Vehicle Lift Arms - 2 ft Extended Height, Shockwave
Rotary Authorized Installer must install lift to prevent voiding the manufacturer's warranty.
Buyer must arrange to have a forklift on-site to unload if the lift is being sent directly to buyer's location.
Description
Introducing the ONE LIFT to service them all! The next evolution in vehicle lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s original and best-selling asymmetrical lift, now featuring Rotary’s NEW All-Vehicle (AV) Lift Arms.
These revolutionary, patent-pending arms provide technicians the ability to lift and service practically all road going vehicles on ONE LIFT (within the lift’s rated capacity), including Battery Electric, Exotic Low Profile, Truck Frame and Unibody Cars & SUVs.
Features and Benefits
- SHOCKWAVE EQUIPPED™
- Designed specifically for service speed and increased productivity
- ULTIMATE IN LIFTING VERSATILITY
- Service any vehicle within the lift’s rated capacity with the shortest arm retraction and largest pickup range of any two-post lift.
- EASY SPOTTING & POSITIONING
- Get more vehicle in the shop and on the lift faster with easy spotting and superior lifting capabilities.
- HIGHEST CAPACITY LOW-PROFILE LIFT AVAILABLE
- Easily spot lower profile vehicles with the industry’s lowest profile arm height available of any 10,000 lb. capacity.
- LOWEST ADAPTER HEIGHT IN THE INDUSTRY
- The outer arm and adapter height are the same measurement reducing any possibility for the arm to contact vehicle underbodies.
- Reach small, specific pick-up points on EVs – AV arms and adapters are designed with the needed clearance to remove propulsion batteries.
- PATENT-PENDING ALL-VEHICLE ARMS
- Innovative design streamlines the arm for a simpler fine adjustment of the adapter while maintaining maximum reach and retraction. Engineered, high-strength tapered arm design allows for easier, faster positioning of adapters compared to traditional arm designs.
- TRUE ASYMMETRICAL ROTATED COLUMN DESIGN
- Service a broader range of vehicles with one innovative ALL-VEHICLE arm design!
- Original “Double S” column design; Performance tested to 20K lift cycles; Nationwide support;
- Customize SPOA10-AV series lifts to fit the needs of your shop with:
- Lift height, Power option, Lift accessories
- ALI Gold Certified
- Comes standard with adjustable round, truck and stackable adapter extensions.
- Available in standard colors of red, blue or black. Must specify color choice when ordering.
Includes
- Set of 4, Round Adapters
- Set of 4, Truck Adapters
- Two sets (four each) of 3-1/2" and 5-1/4" stackable adapter extensions with storage rack
Options
- ROTFJ6279KIT Electric (EV) Rectangular Polymer Adapters for AV Arms with 2" hole
Warranty
One year parts and labor. Additional one year parts warranty if installed by a Rotary-Authorized Installer (RAI).
Product Specifications
- Drive-Thru Clearance: 95-1/4"
- Minimum Adapter Height: 3-3/8"
- Speed of Descent: 19 seconds* (with Shockwave)
- Minimum Bay Size: 12' x 24'
- Maximum Rise: 84-1/2"
- Speed of Rise: 25 seconds* (with Shockwave)
- Ceiling Height Minimum: 13' 9-1/2" (includes 2' extension)
- Overall Width: 11' 5-1/2"
- Inside Columns: 107-1/4"

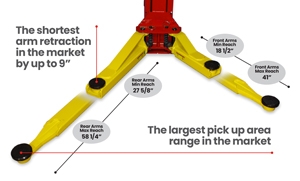

- Rear Arm Reach: 27-5/8" min / 58-1/4" max
- Front Arm Reach: 18-1/2" min / 41" max
- Overall Height: 13' 8-1/2" (includes 2' extension)
- *: Actual rise and descent times vary depending on vehicle weight
