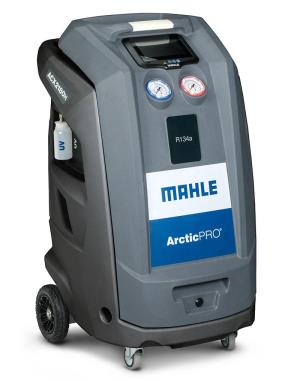

ACX2180H R134a Hybrid Refrigerant Handling System
Description
The ArcticPRO ACX2180H offers flexibility with the same benefits of the ACX2180 but the added capability of servicing hybrid vehicles.
Features
- State-of-the-art ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
- Contains three transducers, providing reduced process times over single sensor units.
- Hybrid certified for high voltage compressor service.
- LED light indicates status visible from anywhere in the workshop.
- iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
- Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service.
- Permanent automatic wireless software updates, ensuring you always have the latest features.
- Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
- Data management and reporting metrics offers the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
- Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
- Network printing capabilities retain valuable service records, network printing capability to print services provided for customer.
- Optional thermal printer allows printing of service reports (sold separately).
Accessories
RTI3608325400 Filter Combo
RTI02680785 Dust Cover
RTI0268069800 Oil Charge Bottle
RTI0268069900 Oil Drain Bottle
RTI0288053200 Red Hose R134A
RTI0288053300 Blue Hose R134A
RTI0238009600 Quick Release Low Side Coupling R134A
RTI0238009500 Quick Release High Side Coupling R134A
RTI3608274400 Calibration Check Ball
RTI0238014700 Adapter LP (External Bottle) USACME 1/2 R134A
RTI0268070000 Vacuum Pump VE215
RTI0118007000 Vacuum Pump Oil (Quart)
RTI3608326900 Thermal Printer Installation Kit
RTI3608311000 Thermal Printer Paper 5PK
RTI0028005400 Vehicle Communications Interface
RTI0118005800 Replacement PAG Oil Cartridge
RTI3608334400 Oil Bottle for Used Oil
Warranty
Two years parts, one year labor
Product Specifications
- Certifications: SAE J2788, SAE J2099, UL1963
- Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
- Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
- Operation: Fully Automatic
- Charging Cylinder: 30 lb. (13.6 kg) DOT
- Compressor: 3/8 HP - 0.279kW
- Dimensions: 47"H x 29"W x 29"D (119 cm x 74 cm x 74 cm)
- Weight: 215 lb. (98 kg)
- Filter Drier Capacity: 150 lb. (75 kg)
- Hoses: 9 ft. (2.75 m)
- Hybrid Function: Certified (ACX2180H only)
- Languages: English, French, Spanish
- Operating Ranges: 50° - 122°F (10° - 50°C)
- Power Source: 120 VAC, 60 Hz, 12 Amp
- Vacuum Pump : 2 CFM dual stage
