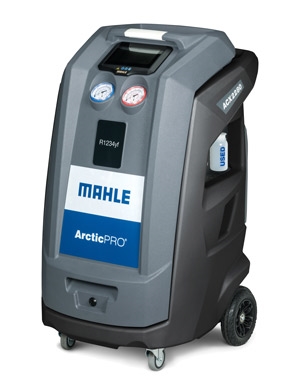

ACX2280 R1234yf Refrigerant Handling System

Description

The most advanced R1234yf unit on the market today, the ArcticPRO® ACX2280 refrigerant handling system offers your shop the ultimate in high-end refrigerant recycling machines.

Features

• State-of-the-art, ergonomic design, 7" capacitive touch screen and intuitive user interface sets a new industry standard.
• New ergonomic hinged service door simplifies unit service.
• LED light indicates status visible from anywhere in the workshop.
• iOS and Android capable phone app allows remote service session mirroring and advanced functions.
• Permanent, automatic wireless software updates, ensuring you always have the latest features.
• Oil management system automatically weighs recovered oil, allowing accurate replenishment of oil removed during service.
• Offers remote support capabilities that allow MAHLE technicians to connect to a unit over WiFi for troubleshooting and advanced support.
• Data management and reporting capabilities provided the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• An integrated refrigerant identifier adds additional convenience and saves time on services.
• Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• The unit retains valuable service records, providing network printing capability to print services provided for customer.
• Optional thermal printer allows printing of service reports (sold separately)

Accessories

RTI3608325400 Filter Combo

RTI02680785 Dust Cover

RTI0268069800 Oil Charge Bottle

RTI0268069900 Oil Drain Bottle

RTI3608294800 Red Hose R1234YF

RTI3608294900 Blue Hose R1234YF

RTI3608295100 Quick Release Low Side Coupling R1234YF

RTI3608295000 Quick Release High Side Coupling R1234YF

RTI0238046800 EcoLOCK® Coupler LP 1234YF

RTI0238046700 EcoLOCK® Coupler HP 1234YF

RTI3608295300 Adapter LP (External Bottle) USACME 1/2 LH R1234YF

RTI0268063500 LD-2 Leak Detector R1234YF

RTI0268070000 Vacuum Pump VE215

RTI0118007000 Vacuum Pump Oil (Quart)

RTI3608326900 Thermal Printer Installation Kit

RTI3608311000 Thermal Printer Paper 5PK

RTI0028005400 Vehicle Communications Interface

RTI0118005800 Replacement PAG Oil Cartridge

RTI3608334400 Oil Bottle for Used Oil

RTI0358269310 R1234yf ACX2XXX Manual

Warranty

Two year parts, one year labor

Product Specifications

• Certifications: SAE J2843, SAE J2888, UL 1963
• Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
• Recovery Performance: 95% at 70° to 75°F (21° to 24°C)
• Operation: Fully Automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP, 0.279kW
• Dimensions: 47" x 29" x 29" (119 cm x 74 cm x 74 cm)
• Weight: 215 lb. (98 kg)
• Display : Color, 7" Capacitive Touchscreen
• Filter Drier Capacity: 150 lb. (68 kg) spin-on type
• Hoses: 9 ft. (2.75 m)
• Hybrid Function: Certified
• Languages: English, French, Spanish
• Operating Ranges: 50° - 122°F (10­­° - 50°C)
• Power Source: 120 VAC, 60 Hz, 12 Amp
• Vacuum Pump : 2 CFM dual stage
