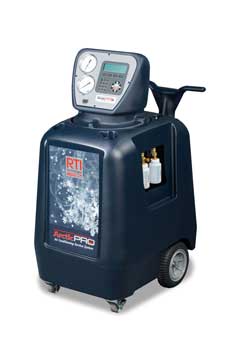

RHS 980 Arctic PRO A/C Service Machine

Description

ArticPRO® RHS 980 Digital A/C R134a Refrigerant Handling System

The only A/C servicing machine with vehicle A/C system diagnostics, dual vacuum operation function, and integrated micron sensor.

Superior Productivity - The ArcticPRO® RHS®980 recovers 95% of automobile refrigerant systems and has a refrigerant recharge accuracy of +/– 1/2 ounce to save money and eliminate callbacks. It features fully automatic operation and when utilized with TechALERT®, the RHS®980 dramatically boosts workshop productivity.

Ease-of-Use = Improved Efficiency! All control functions of the RHS®980 are designed to provide intuitive and rapid interaction with the service technician.

Advanced Serviceability - Simply remove the one-piece composite cover to gain unobstructed service access to all interior components and the RHS®980’s unique two-piece KWIK-CHANGE “block” manifold assembly provides quick remedy to most fluid path service issues.

Proven Reliability - For the best out-of-box reliability, the RHS®980 unit specifies the highest quality components and every machine is functionally tested before shipment from the RTI factory.electronically controlled pressure regulation protects compressor and other critical components.

Features

• Fully automatic sequence programmability - instruct the unit to recover, recycle, vacuum, leak test, and charge and then go do something else.
  • If equipped, TechALERT notifies you when your service is complete or requires attention.
• System vacuum level evaluation occurs after refrigeration evacuation cycle to identify possible leaks in automobile system.
• 30 lb. refrigerant recovery cylinder mounted inside cabinet to minimize load cell re-calibration.
• Refrigerant charge either High side or Low side depending upon technician's preference.
• Monitors new refrigerant use, notifies technician when additional refrigerant is required.
• Filter-life monitor provides preventative maintenance alarm when filtering servicing is required.
• Automatic air purge eliminates harmful air from auto A/C systems
• Automatic oil recovery and integrated oil charge bottles are located outside of cabinet for quick reference and easy access.
• Control panel mounted on a revolving turret - the turret rotates 90° in either direction for unrestricted viewing capability which eliminates the machine repositioning for the technician.
• Intuitively easy-to-use function input and display:
  •   Extra large character (4 x 20) LCD display
  • Intuitive plain language prompts
  • Language capability pre-programmed with English, Spanish, French, German. Other foreign languages can be accomodated
  • EA-Select menu-driven programming inputs
  • Conveniently reached keypad with tactile button panel controls
•  Easy-to-read large face, High and Low pressure gauges.
• Ergonomic mobility handle - perfect for hose storage and low-effort machine positioning.
• Low rolling resistance, cushioned, non-inflatable rear wheel/tire assemblies - no maintenance, provides easy machine handling.

 Warranty

Two (2) years parts and labor

Product Specifications

• Weight: Approx 255 lbs. (116 kg)
• Operating Range: 32° - 120°F (0° - 49°C)
• Scale Accuracy: J2788 Certified (±0.5 oz) (±15 grams)
• Recovery Accuracy: J2788 Certified >95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Hoses: 9' (2.74 m)
• Compressor: 3/8 hp - 0.8 kW, pressure protected, balanced start-up, oiled, hermetically sealed
• Electrical: 120 VAC, 60 Hz, 12 Amp (Option: 230 VAC, 50 Hz, 6 Amp)
• Condenser Fan: Industrial-duty
• Vacuum Pump : 7CFM, Single Stage, 29.9 InHg
• Charging Cylinder: 30 lbs. (13.6 kg) DOT
• Recycling Filter-Drier: Spin-on Type
• Shipping Dimensions: 50"H x 22"W x 35"D (127 cm x 56 cm x 89 cm)
