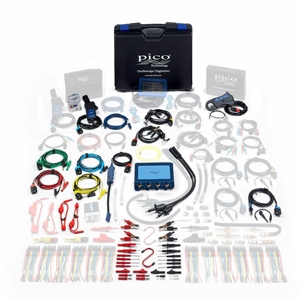

PicoScope 4425A, 4-Channel, Standard Kit
Item Number: PIOPQ178
Supplier:
PICO TECHNOLOGY
Description
PicoScope 4425A 4-Channel Standard Kit
Includes
- PicoScope Module
- (1 ) Pico 4425A 4-channel scope module (PR340)
- Test Leads and Breakouts
- PIOTA404 (1) PicoBNC+ 3-meter Test Lead: Blue, 4mm permanent ground
- PIOTA405 (1) PicoBNC+ 3-meter Test Lead: Red, 4mm permanent ground
- PIOTA406 (1) PicoBNC+ 3-meter Test Lead: Green, 4mm permanent ground
- PIOTA407 (1) PicoBNC+ 3-meter Test Lead: Yellow, 4mm permanent ground
- PIOTA506 (2) PicoBNC+ 10:1 Scope Probe
- Ignition
- Current
- Clips, Probes, and Adapters
- PIOTA003 (2) Small crocodile clip (black)
- PIOTA004 (2) Small crocodile clip (red)
- PIOTA001 (2) Multimeter style test probe (black)
- PIOTA002 (2) Multimeter style test probe (red)
- PIOTA157 (2) Battery clip 4mm socket (red)
- PIOTA158 (2) Battery clip 4mm socket (black)
- PIOTA161 (4) Flexible back pinning probe (black)
- PIOTA162 (4) Flexible back pinning probe (red)
- PIOTA017 (4) 4mm shrouded to unshrouded adaptor red
- PIOTA008 (1) Electronics Acupuncture Probes
- Miscellaneous
Warranty
- PicoScope Module: 24-months
- Components: 12-months
Features and Benefits
- High Sample Rate
- A high sample rate captures more data points per second, providing a detailed and accurate representation of fast-changing signals. This is essential for diagnosing high-speed automotive systems, such as ignition or fuel injection, where precise timing is critical. It ensures that no rapid events or anomalies are overlooked.
- Vertical Resolution
- High vertical resolution enhances the ability to distinguish fine details in a signal, crucial for identifying small but significant electrical changes. For advanced diagnostics, this means more accurate detection of subtle faults or variations in sensor and actuator signals. It provides clearer insights into the health and performance of automotive systems.
- Wide Bandwidth
- Wide bandwidth allows PicoScope to capture a broader range of frequencies, making it suitable for diagnosing modern vehicles with high-speed communication systems and high-frequency signals. This is vital for analyzing data bus signals like CAN or FlexRay and for investigating issues in complex electronic systems. It ensures comprehensive coverage of all potential diagnostic needs.
- Custom Probes
- Custom probes allow you to tailor the oscilloscope's input to match specific diagnostic needs, ensuring accurate signal measurement and analysis. This flexibility is crucial when dealing with diverse automotive systems, such as high-voltage ignition circuits or low-voltage sensor signals. They also allow for better signal integrity and safety when working with specialized or sensitive components.
Includes
- PIOMI168 - S hook
- PIOPA038 - QuadroPack telescopic plastic case (2 qty)
- PIOPA209 - Carry Case: 4x25A Standard Case
- PIOPQ174 - PicoScope 4425A 4ch Scope only, w/USBcable
- PIOTA003 - Small crocodile clip - black (2 qty)
- PIOTA004 - Small crocodile clip - red (2 qty)
- PIOTA008 - Back-Pinning Probe set
- PIOTA017 - 4mm shrouded to unshrouded adaptor red (4 qty)
- PIOTA034 - ATC/ATO Fuse Extension Lead
- PIOTA035 - Mini Fuse Extension Lead
- PIOTA037 - HT extension lead
- PIOTA106 - Earth Wire for coil pack 45cm long
- PIOTA157 - Battery clip 4mm socket (red) (2 qty)
- PIOTA158 - Battery clip 4mm socket (black) (2 qty)
- PIOTA161 - Flexible back pinning probe (black) (4 qty)
- PIOTA162 - Flexible back pinning probe (red) (4 qty)
- PIOTA310 - Multimeter style probe 1000V CAT III (black) (2qty)
- PIOTA311 - Multimeter style probe 1000V CAT III (red) (2 qty)
- PIOTA388 - PicoBNC+ Current Clamp: 2000A AC/DC
- PIOTA397 - PicoBNC+ Secondary Ignition Pickup (2 qty)
- PIOTA398 - PicoBNC+ Coil On Plug (COP) & SignalProbe
- PIOTA404 - PicoBNC+ Test Lead: 4mm permanent ground, 3m Blue
- PIOTA405 - PicoBNC+ Test Lead: 4mm permanent ground 3m, Red
- PIOTA406 - PicoBNC+ Test Lead: 4mm permanent ground 3m, Green
- PIOTA407 - PicoBNC+ Test Lead: 4mm permanent ground 3m, Yellow
- PIOTA473 - PicoBNC+ Current Clamp: 60A AC/DC
- PIOTA506 - PicoBNC+ 10:1 Attenuating Test Lead
- PicoScope Automotive software
- Free software updates
- Free technical support
Attributes
- 4 channels
- Up to 400 MS/s real–time sample rate
- 20 MHz bandwidth
- 250,000,000 sample memory
- ±200 V input range
- Floating inputs
- ConnectDetectTM for reliable connections
- No external power supply required
- USB 3.0 connection for faster screen updates
- Protected against overloads and short circuits
- CAN bus and FlexRay compatible
- Use with any vehicle
- Easy to use
Warranty
24 months
Product Specifications
- Model : 4425A
- Channels: 4
- Bandwidth: 20 MHz
- Resolution: 12 bits (16 bits enhanced)
- Sampling Rate: 700 MS/s
- Buffer Memory: 250 M samples
- Input ranges (full scale): ±50 mV to ±200 V in 12 ranges
- Software Supplied: PicoScope®, PicoDiagnostics®
- Language Support: Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
- PC and Power Requirementsa: Desktop or laptop running Windows 10 recommended Powered from PC USB port (USB 3.0 / 3.1 recommended; USB 2.0 compatible).
